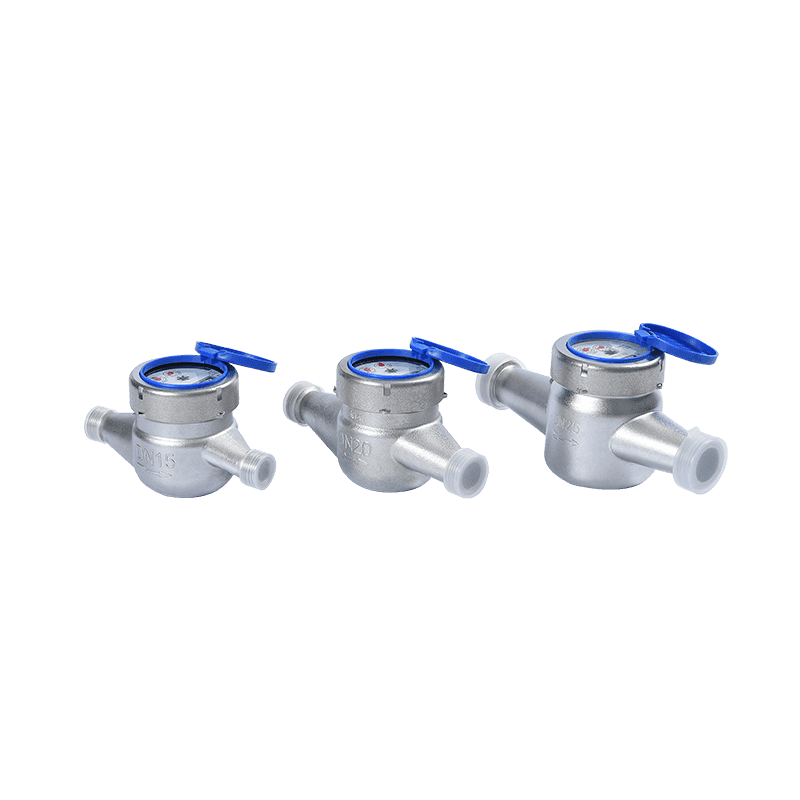

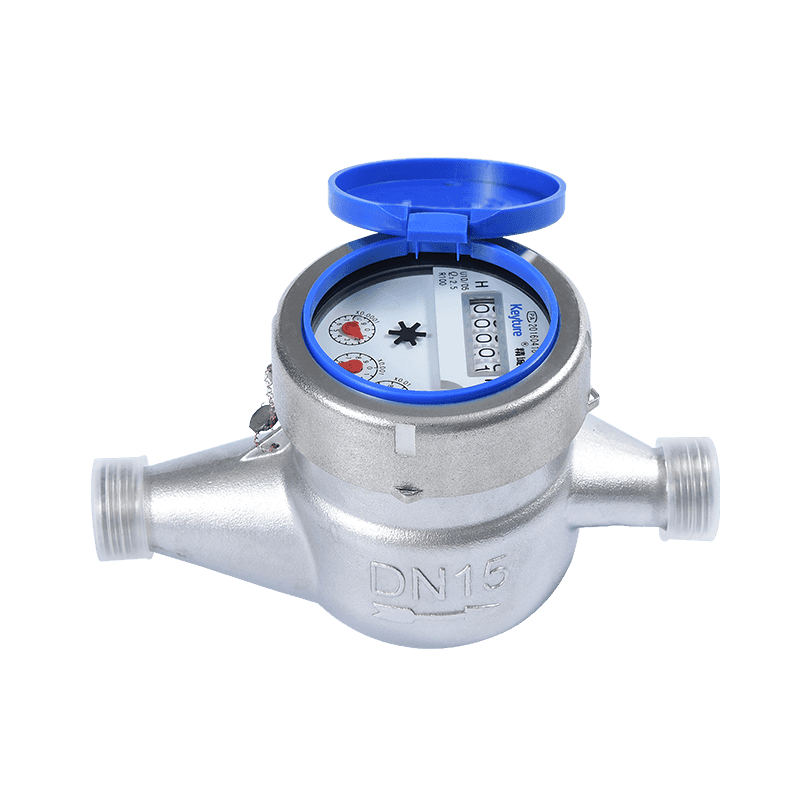

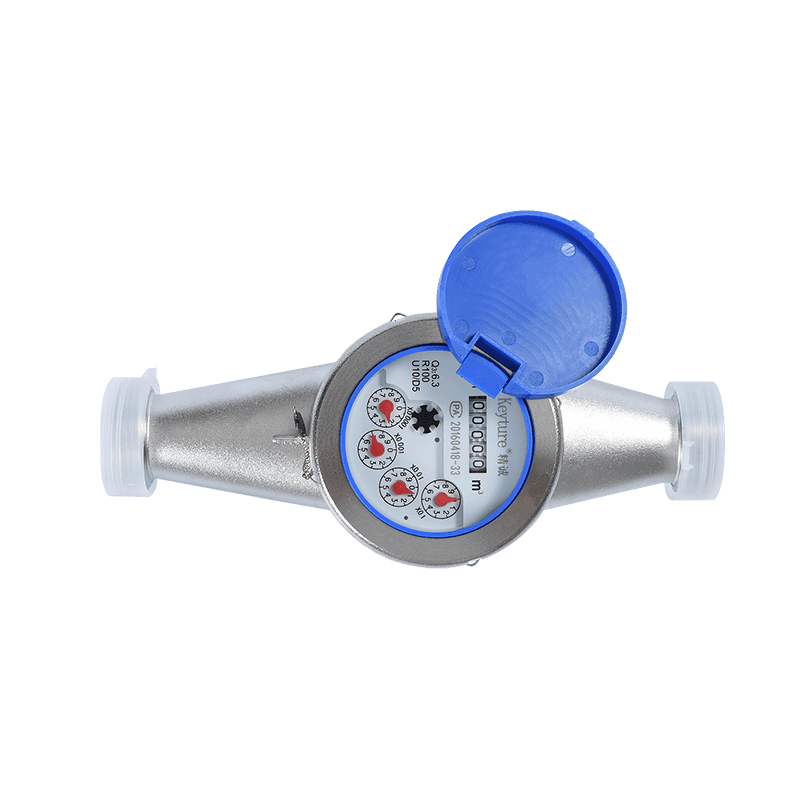

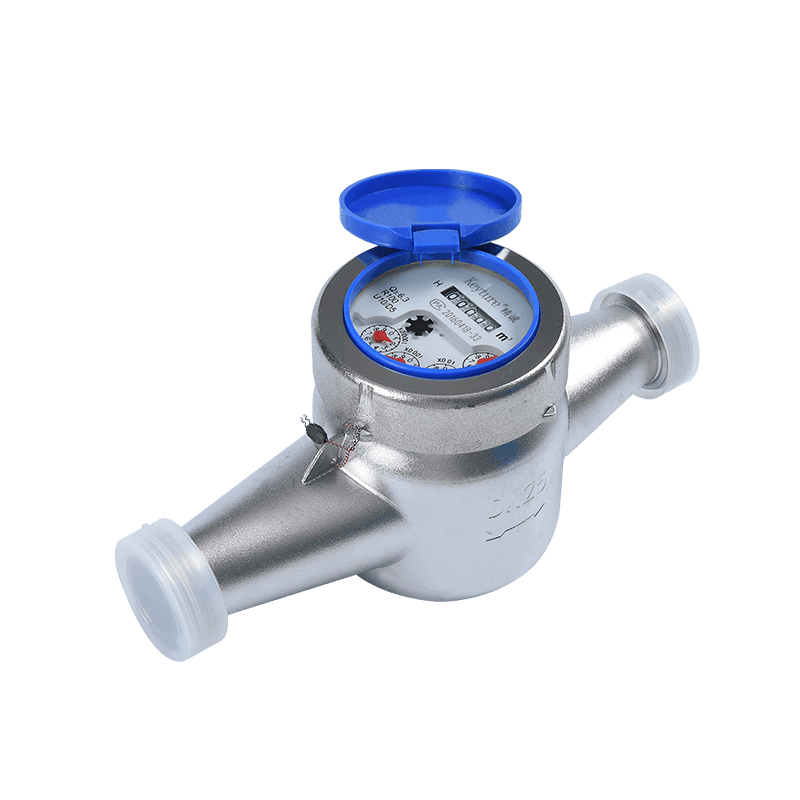

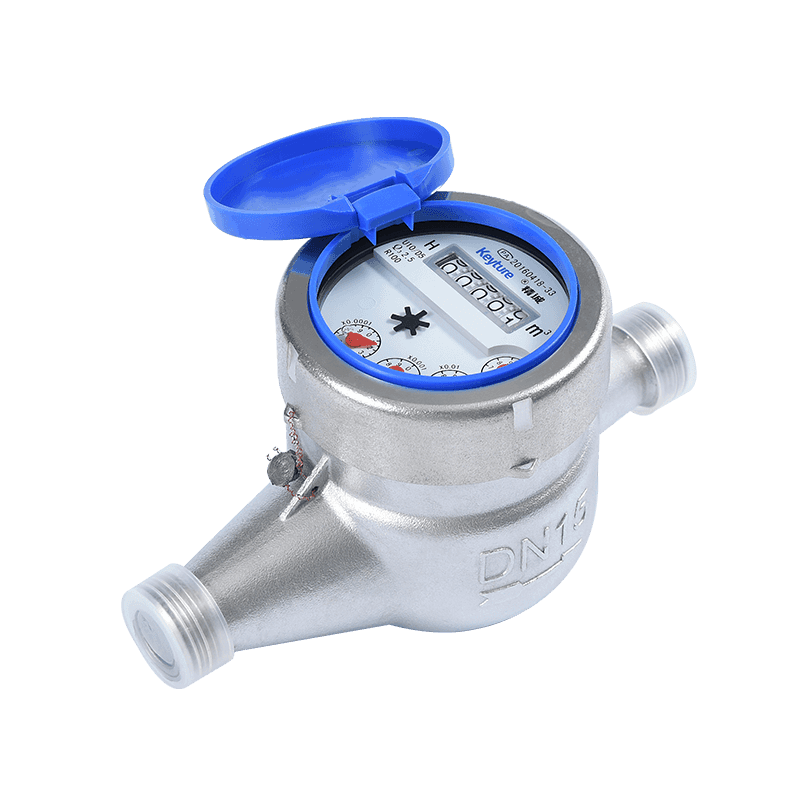

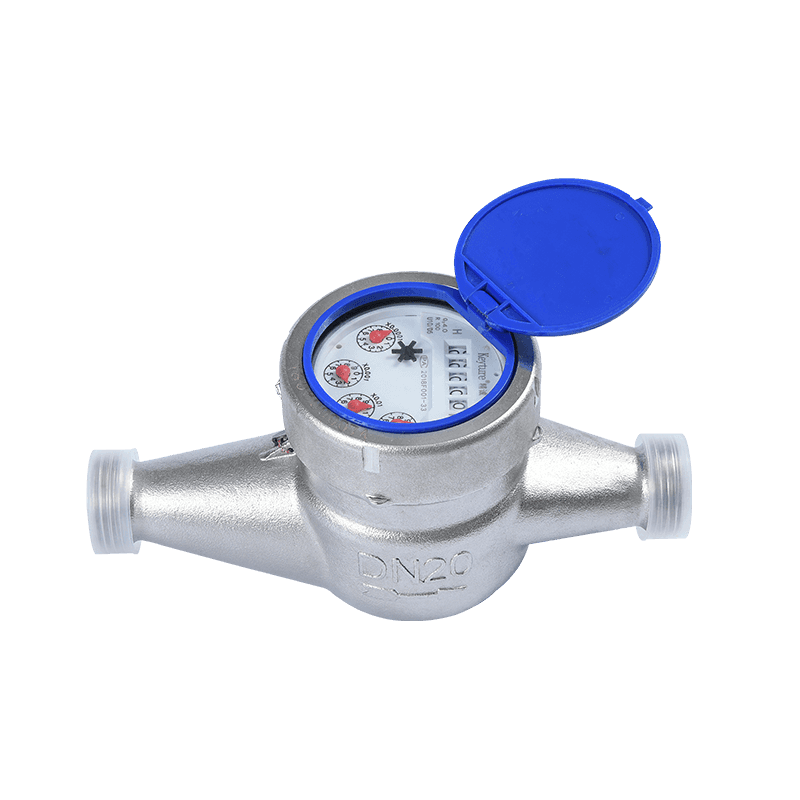

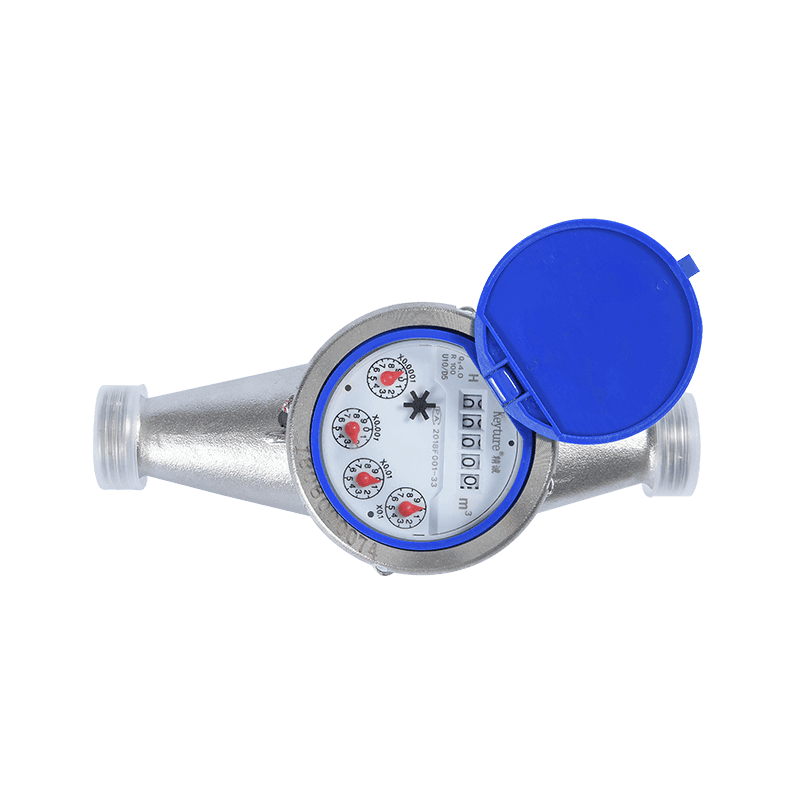

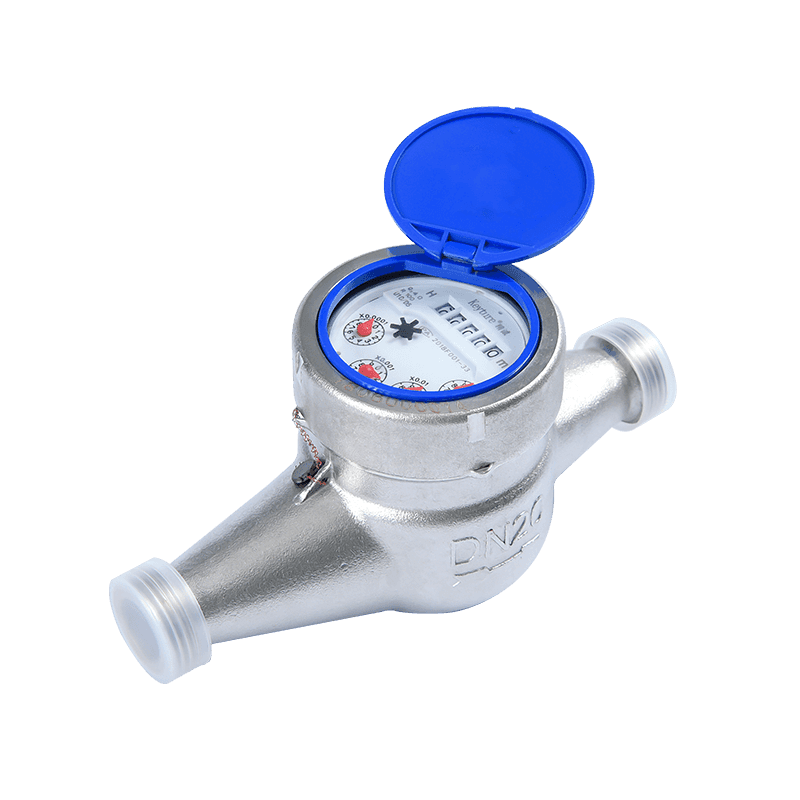

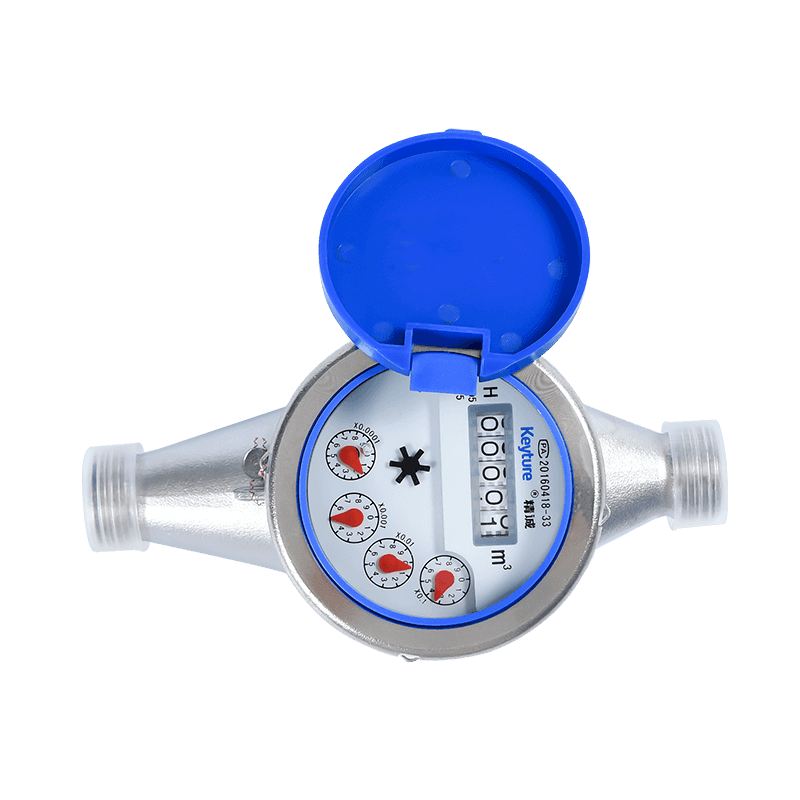

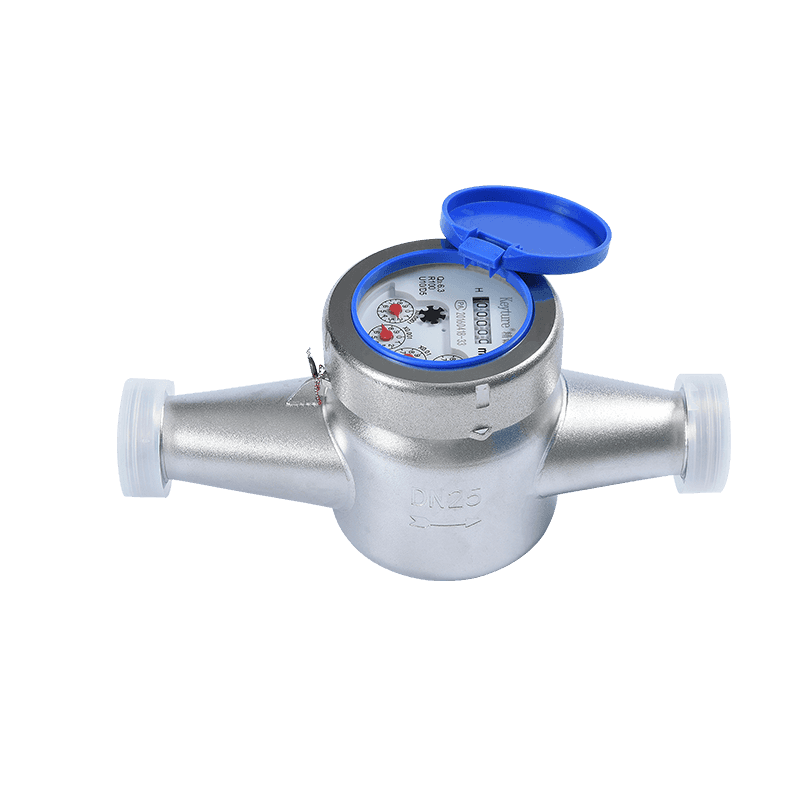

Wet Type Semi-Liquid Sealed Multi Jet Silver Painted Iron Body Water Meter Custom

Home / Product / Mechanic Water Meter / Wet Type Semi-Liquid Sealed Multi Jet Silver Painted Iron Body Water Meter

Description

1. Application

Used for household or residential units to measure, memorize and display the volume of cold water flowing through the pipeline, 360° rotating dial. DN15-40, R80,R100,R160. Mechanical drive.

2. Features

● Adopt multi-jet type.

● Wet type register, high sensitivity,glycerin-sealed dial ensures long-term clear reading, Tamper proof.

● Material: Brass, iron, plastic Body for option.

● Non-return valve is available.

● Un-affected by grit and particulates.

● Provided with lead seal and dustproof cover.

● Confirm to ISO4064.

● Available for IP68.



3. Head Loss Curve



4. Accuracy Error Curve


5. Installation Dimension

Item No

LXSG-15

LXSG-20

LXSG-25

LXSG-32

LXSG-40

L1

mm

260

295

345

350

375

L

mm

165

190

225

230

245

H

mm

110

110

115

115

115

W

mm

98

98

110

110

110

Connection Thread

D(mm)

G3/4"

G1"

G1 1/4"

G1 1/2"

G2"

d(mm)

R1/2

R3/4

R1

R1  1/4

R1  1/2

Weight

with unions(kg)











without unions(kg)

1

1.1

1.3

1.5

1.8


6. Main Technical Data

Model number

LXS-15

LXS-20

LXS-25

LXS-32

LXS-40

Nominal diameter (DN)[mm]

15

20

25

32

40

Ratio Q3/Q1

R80

R100

R160

R80

R100

R160

R80

R100

R160

R80

R100

R160

R80

R100

R160

Overload flow rate (Q4) [m³/h]

3.125

3.125

3.125

5

5

5

7.875

7.875

7.875

12.5

12.5

12.5

20

20

20

Permanent flow rate (Q3) [m³/h]

2.5

2.5

2.5

4

4

4

6.3

6.3

6.3

10

10

10

16

16

16

Transitional flow rate (Q2) [m³/h]

0.05

0.04

0.025

0.08

0.064

0.04

0.126

0.1

0.063

0.2

0.16

0.1

0.32

0.256

0.16

Minimum flow rate (Q1) [m³/h]

0.032

0.025

0.015

0.05

0.04

0.025

0.08

0.063

0.039375

0.125

0.1

0.0625

0.2

0.16

0.1

Accuracy class

2

Maximum permissible error for the lower flow rate zone (MPEι)

±5%

Maximum permissible error for the upper flow rate zone (MPEμ)

±2% for water having a temperature ≤30℃
±3% for water having a temperature >30℃

Temperature class

T30,T50

Water pressure classes

MAP 16

Pressure-loss classes

△P63

Indicating range[m³]

99 999

Resolution of the indicating device[m³]

0.00005

Flow profile sensitivity classes

U10 D5

Orientation limitation

HORIZONTAL
