KM05-05

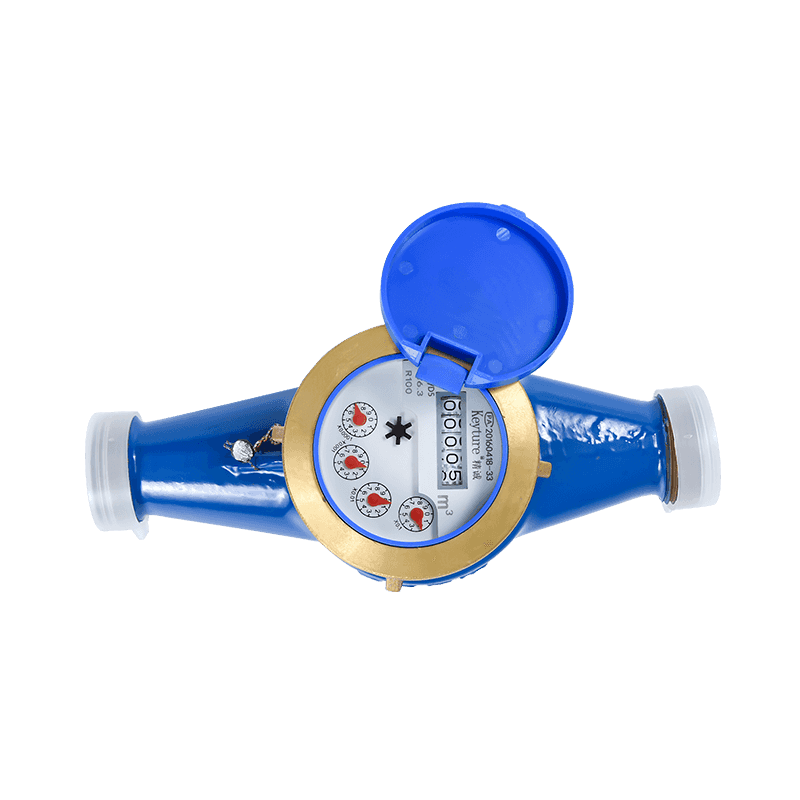

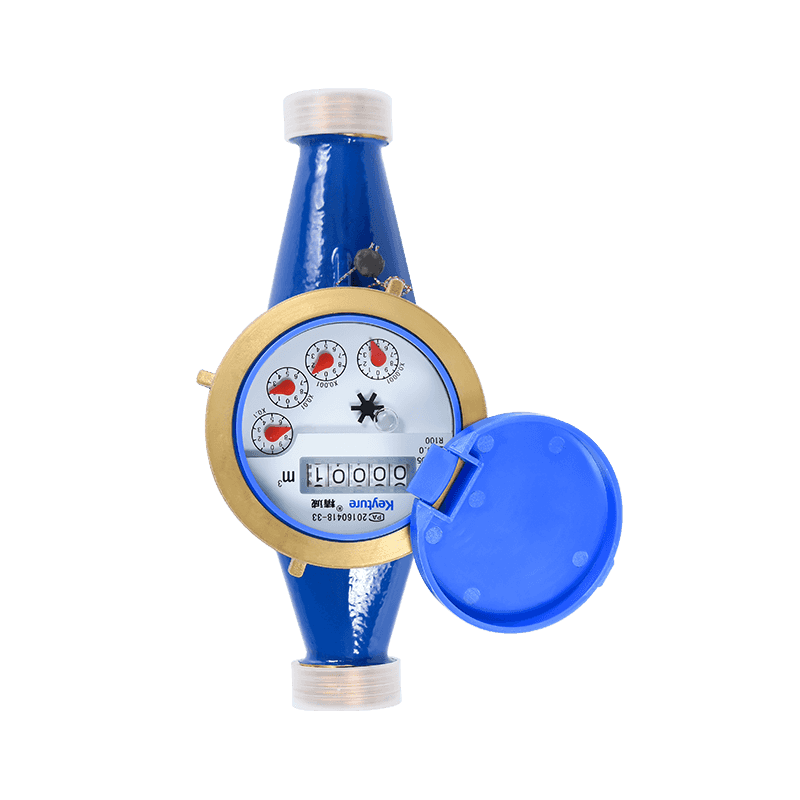

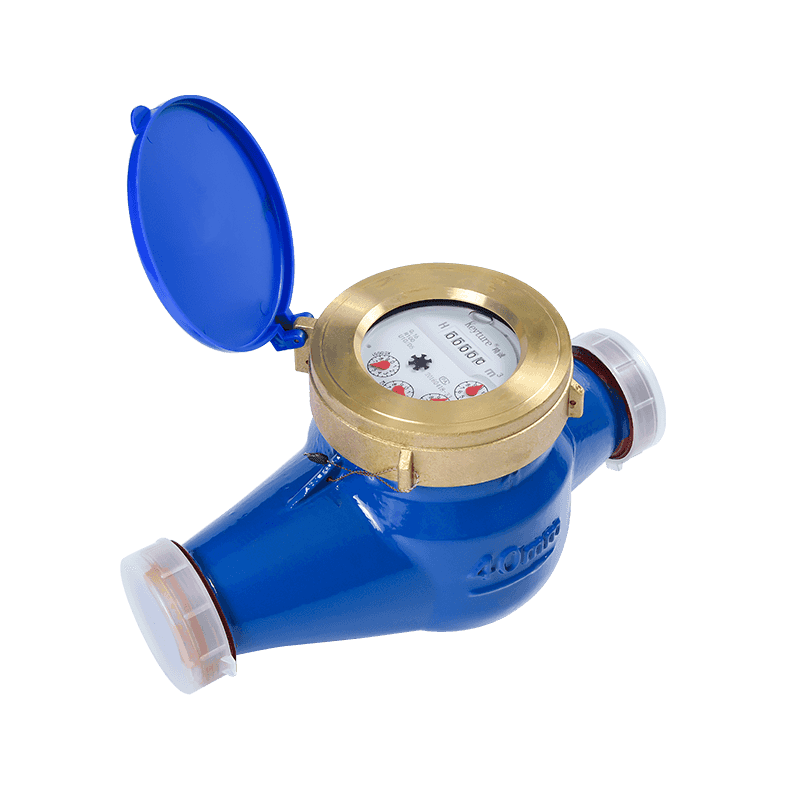

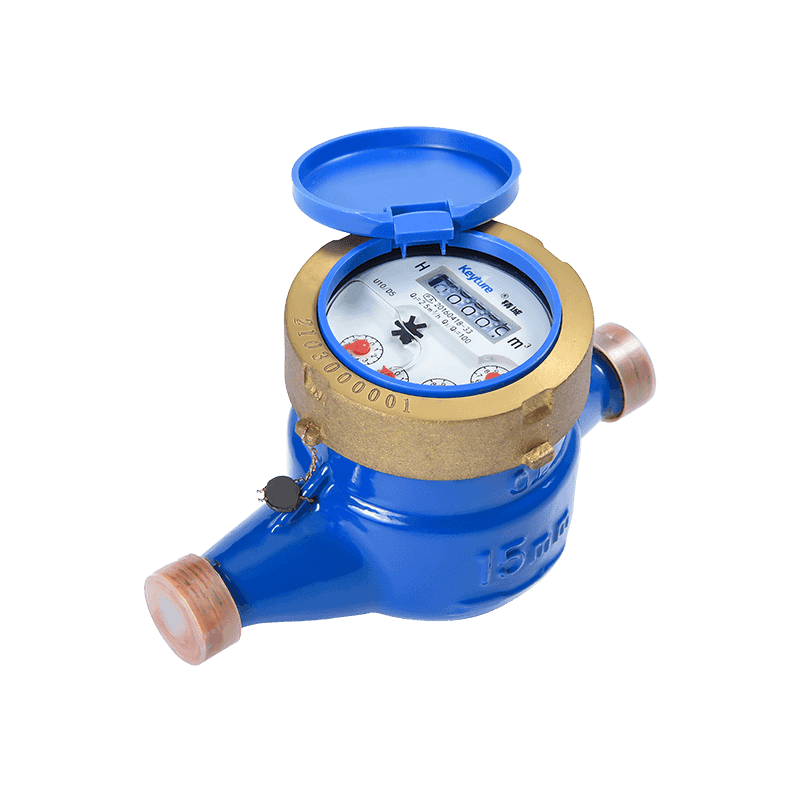

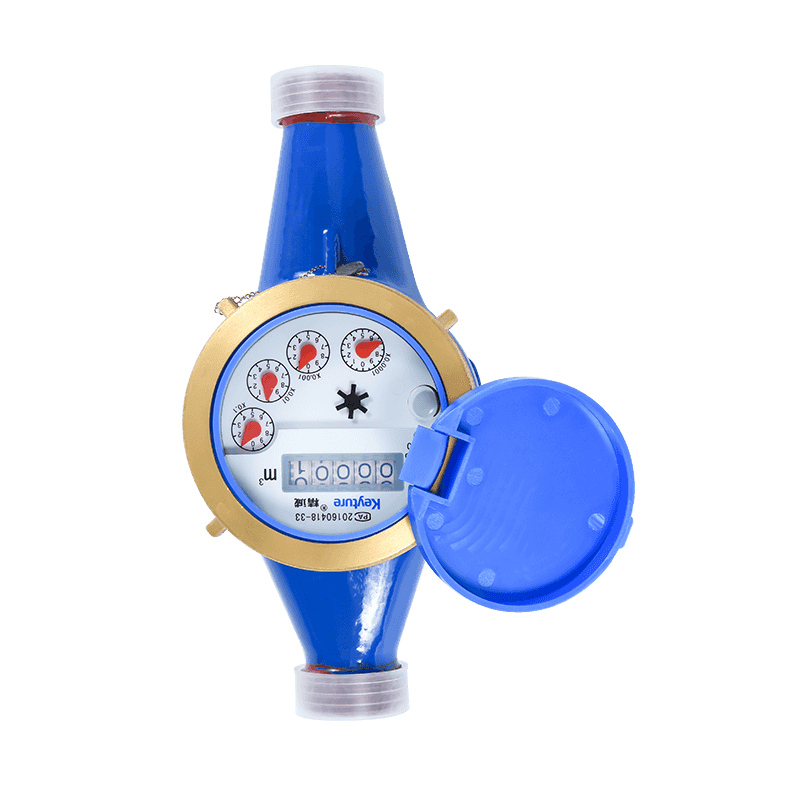

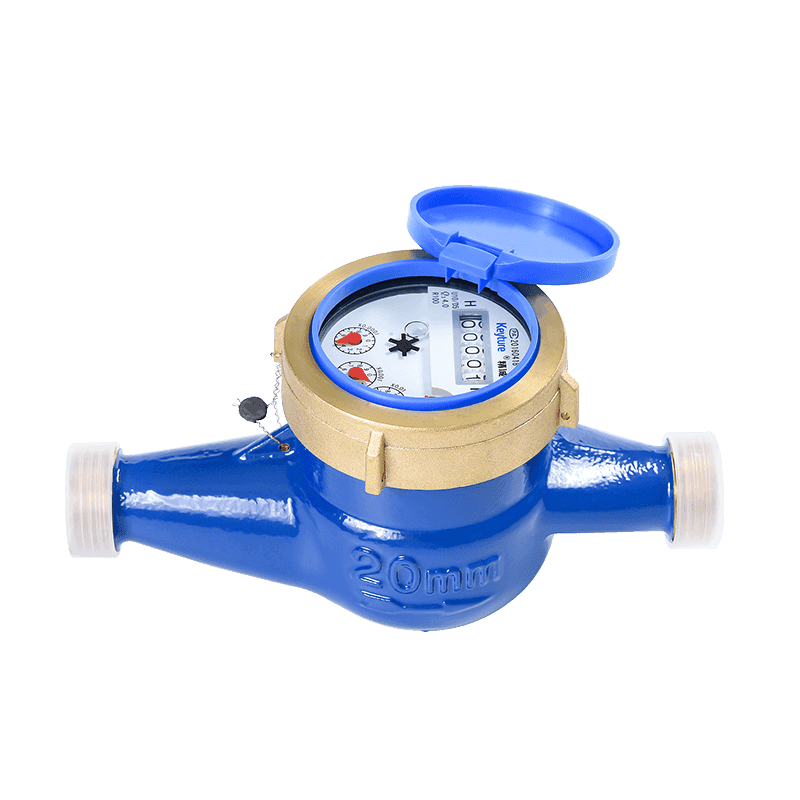

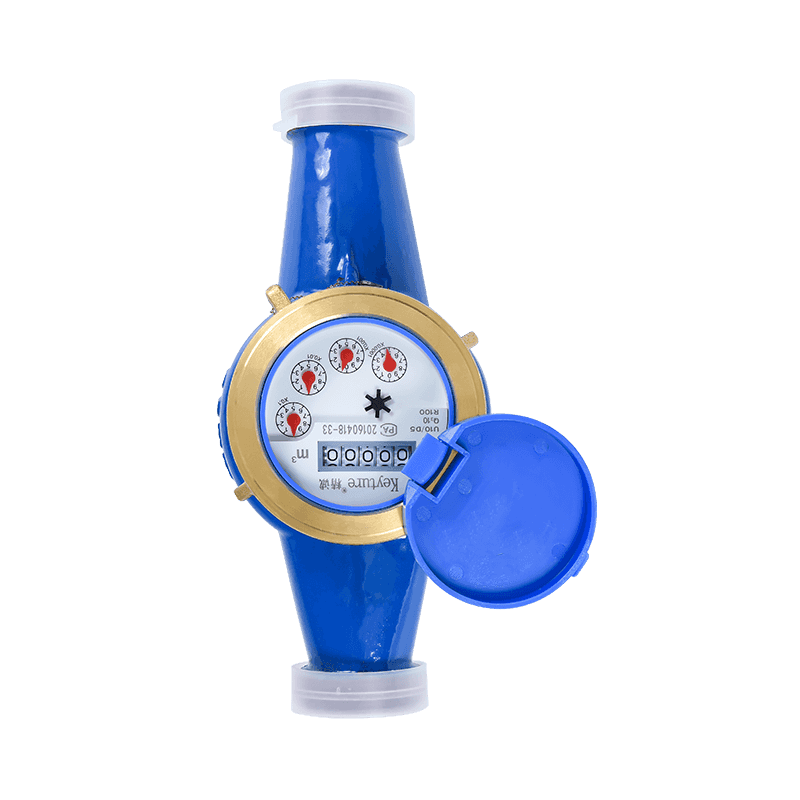

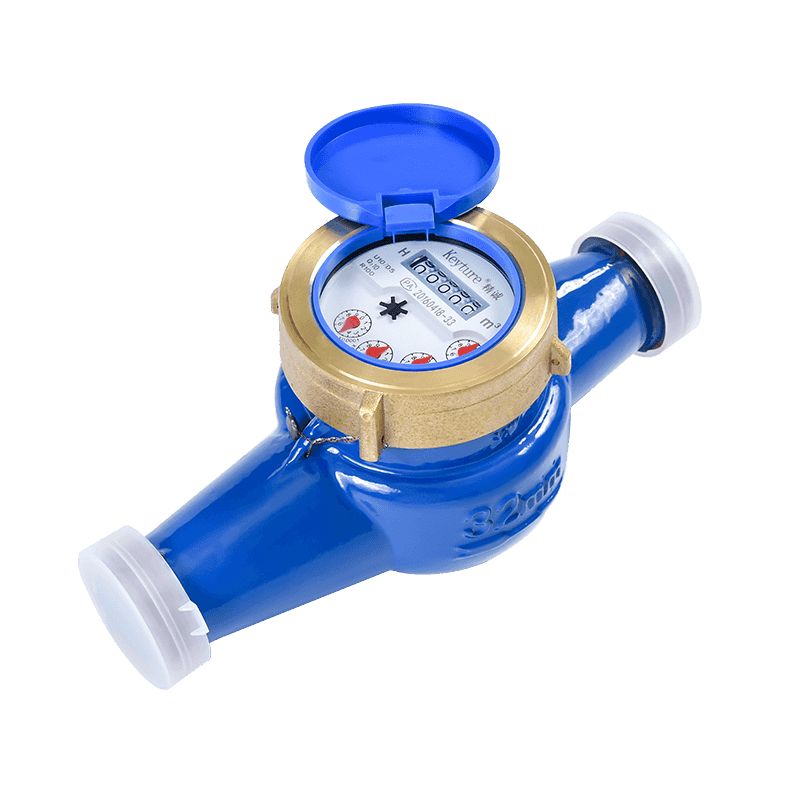

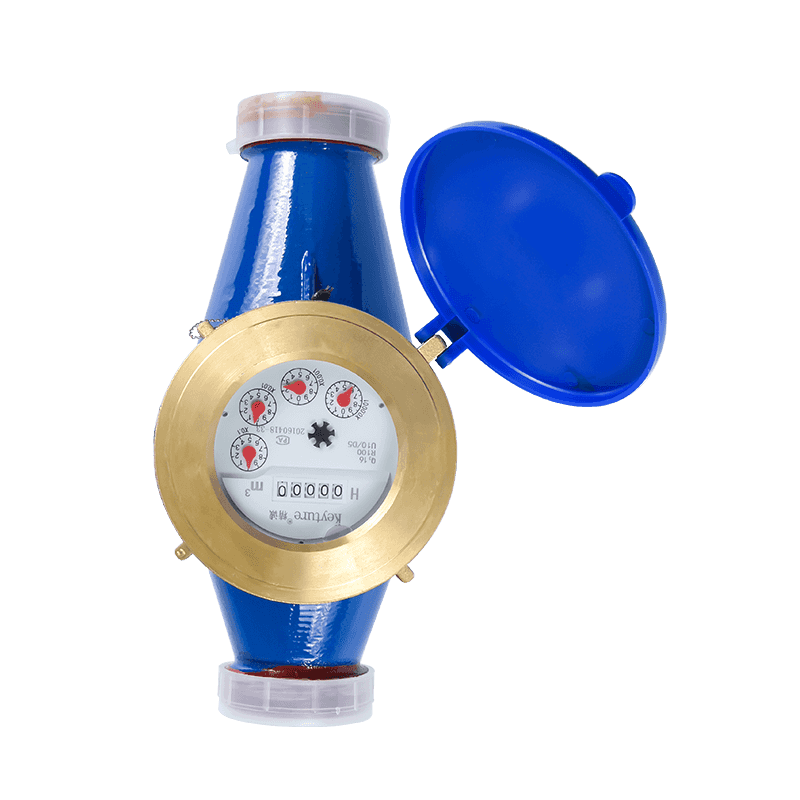

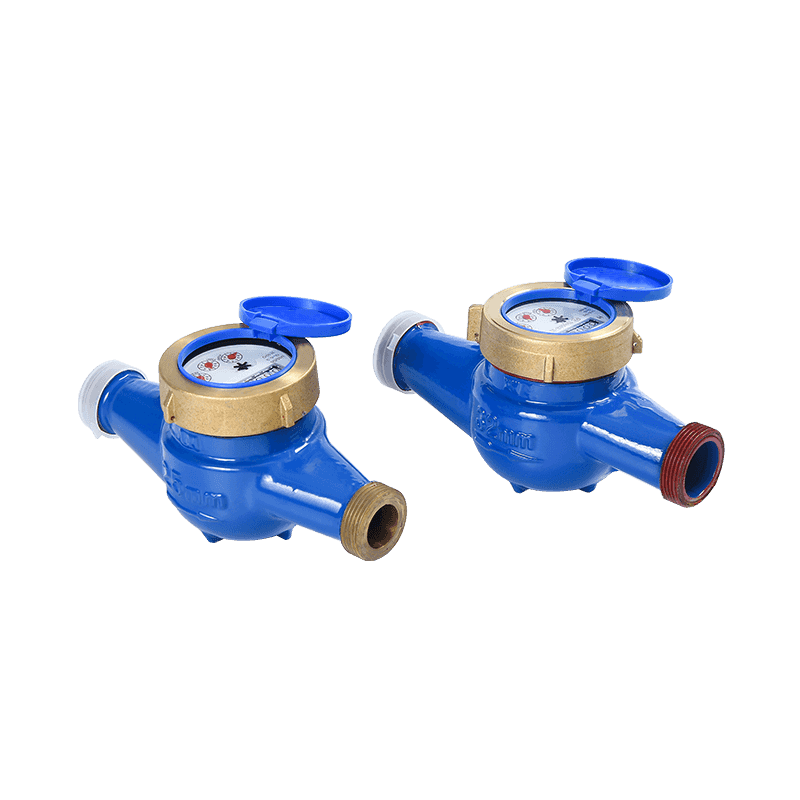

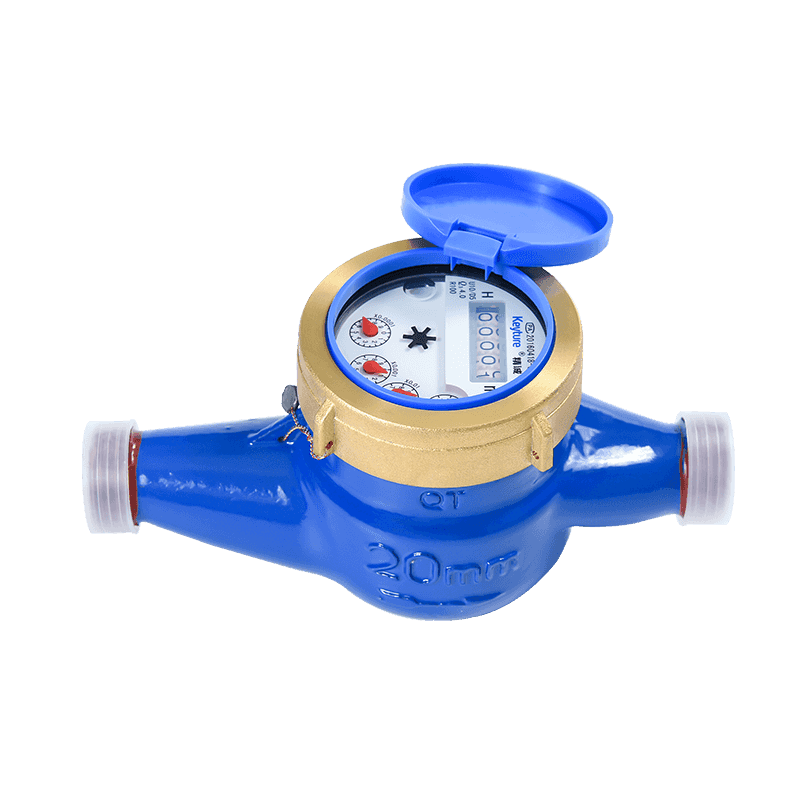

Wet Type Semi-Liquid Sealed Multi Jet Brass Body Water Meter

PREV: Vertical Dry Type Vane Wheel Mechanical Cold Water Meter NEXT:Wet Type Semi-Liquid Sealed Multi Jet Silver Painted Iron Body Water Meter

Description

1. Application

Used for household or residential units to measure, memorize and display the volume of cold water flowing through the pipeline. Adopt multi-jet type, wet type register, high sensitivity, glycerin-sealed dial ensures long-term clear reading, high water quality requirements.

2. Features

● Adopt multi-jet type.

● Wet type register, high sensitivity,glycerin-sealed dial ensures long-term clear reading, Tamper proof.

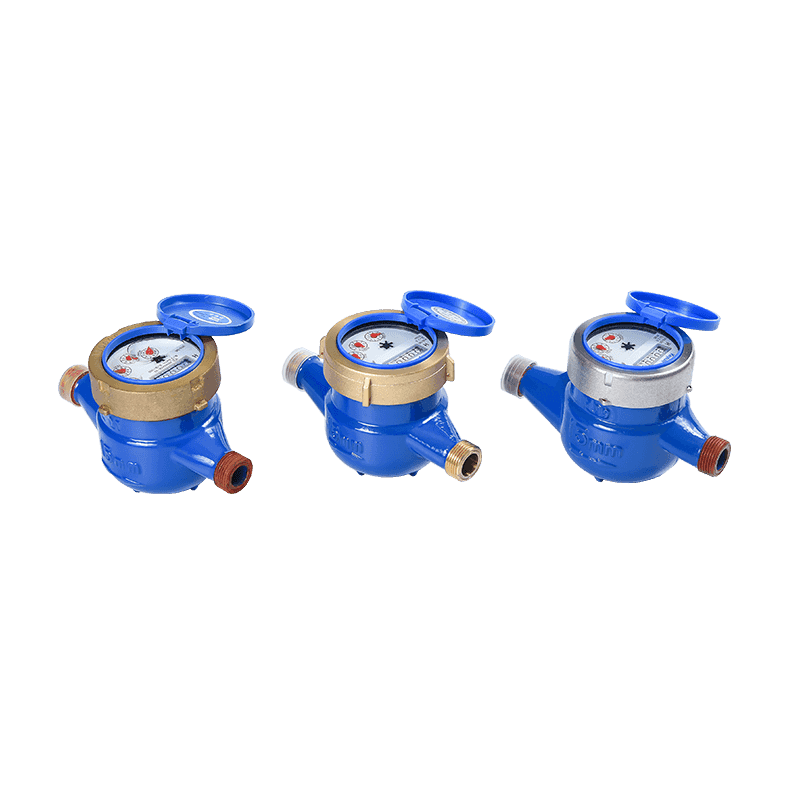

● Material: Brass, iron, plastic Body for option.

● Non-return valve is available.

● Un-affected by grit and particulates.

● Provided with lead seal and dustproof cover.

● Confirm to ISO4064.

● Available for IP68.

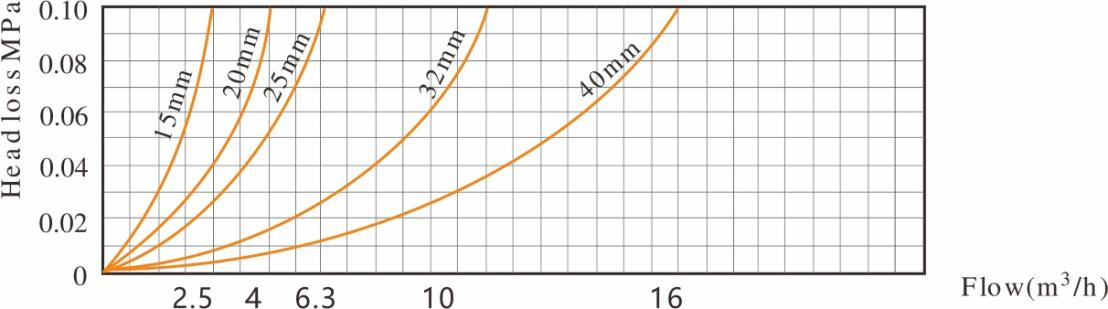

3. Head Loss Curve

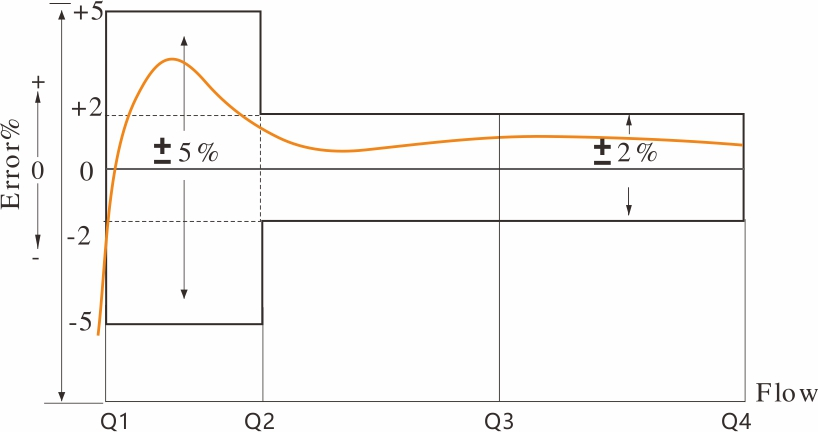

4. Accuracy Error Curve

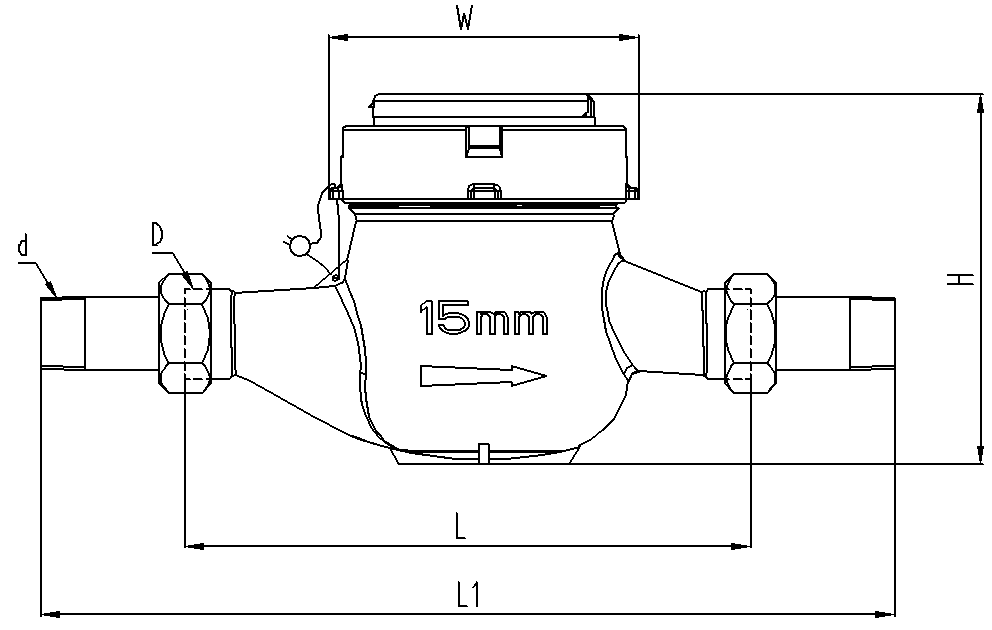

5. Installation Dimension

Item No		LXS-15	LXS-20	LXS-25	LXS-32	LXS-40
L1	mm	260	295	345	350	375
L	mm	165	190	225	230	245
H	mm	110	110	115	115	115
W	mm	98	98	110	110	110
Connection Thread	D(mm)	G3/4"	G1"	G1 1/4"	G1 1/2"	G2"
Connection Thread	d(mm)	R1/2	R3/4	R1	R1 1/4	R1 1/2
Weight	with unions(kg)
Weight	without unions(kg)	1.2	1.4	1.8	2	2.5

6. Main Technical Data

Model number	LXS-15			LXS-20			LXS-25			LXS-32			LXS-40
Nominal diameter (DN)[mm]	15			20			25			32			40
Ratio Q3/Q1	R80	R100	R160	R80	R100	R160	R80	R100	R160	R80	R100	R160	R80	R100	R160
Overload flow rate (Q4) [m³/h]	3.125	3.125	3.125	5	5	5	7.875	7.875	7.875	12.5	12.5	12.5	20	20	20
Permanent flow rate (Q3) [m³/h]	2.5	2.5	2.5	4	4	4	6.3	6.3	6.3	10	10	10	16	16	16
Transitional flow rate (Q2) [m³/h]	0.05	0.04	0.025	0.08	0.064	0.04	0.126	0.1	0.063	0.2	0.16	0.1	0.32	0.256	0.16
Minimum flow rate (Q1) [m³/h]	0.032	0.025	0.015	0.05	0.04	0.025	0.08	0.063	0.039375	0.125	0.1	0.0625	0.2	0.16	0.1
Accuracy class	2
Maximum permissible error for the lower flow rate zone (MPEι)	±5%
Maximum permissible error for the upper flow rate zone (MPEμ)	±2% for water having a temperature ≤30℃ ±3% for water having a temperature ＞30℃
Temperature class	T30,T50
Water pressure classes	MAP 16
Pressure-loss classes	△P63
Indicating range[m³]	99 999
Resolution of the indicating device[m³]	0.00005
Flow profile sensitivity classes	U10 D5
Orientation limitation	HORIZONTAL
