KM03-RF04

Multi Jet Dry Type Card Prepaid Water Meter Ball Valve

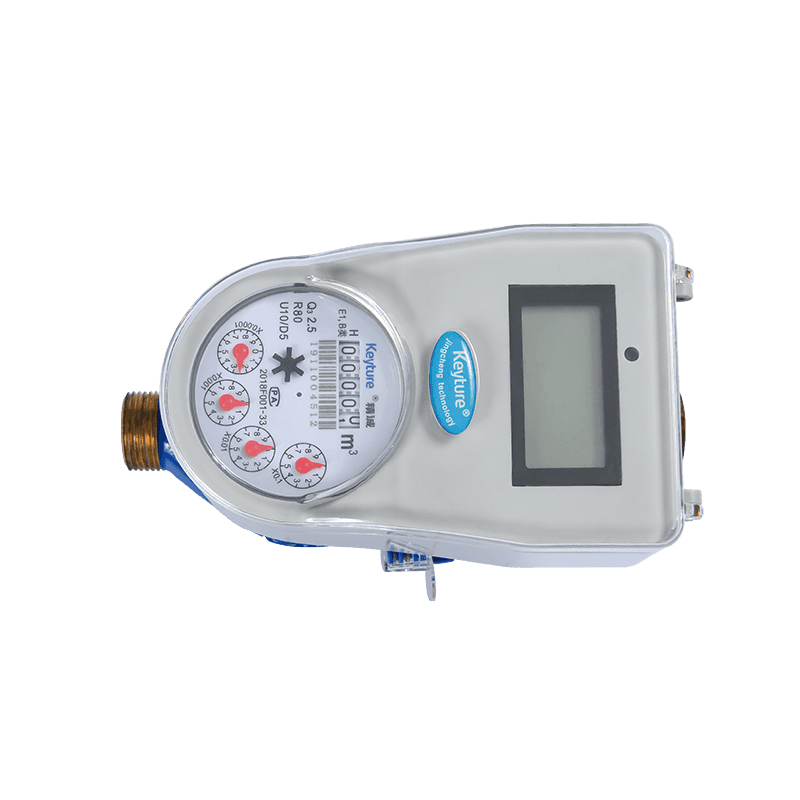

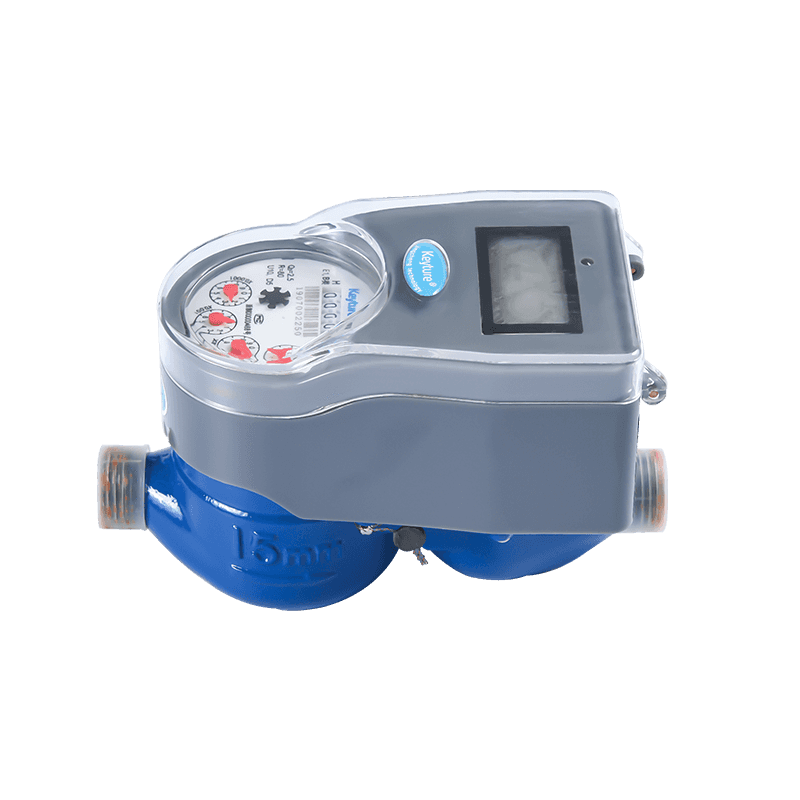

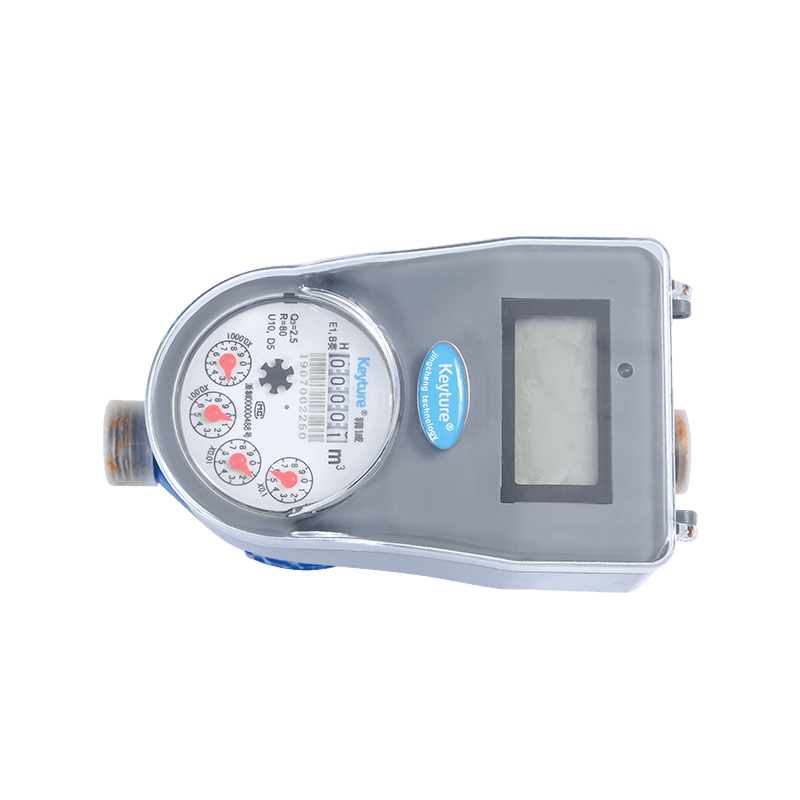

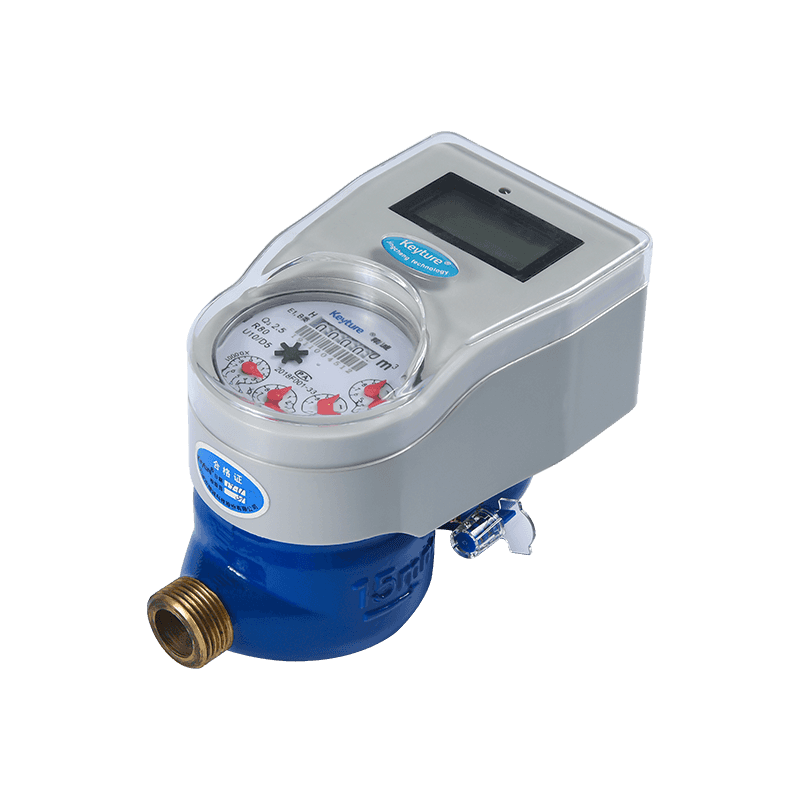

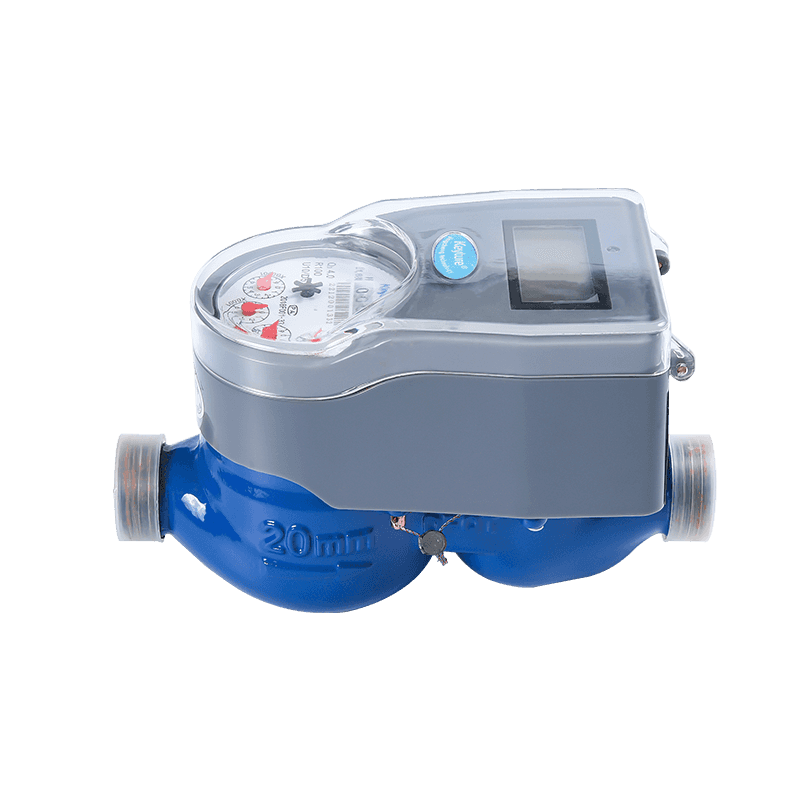

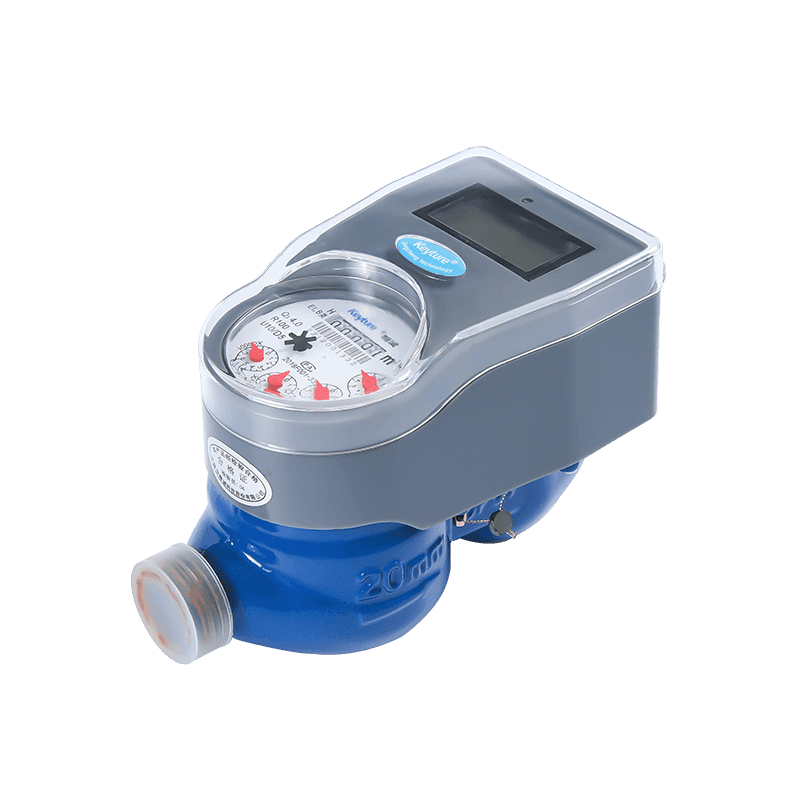

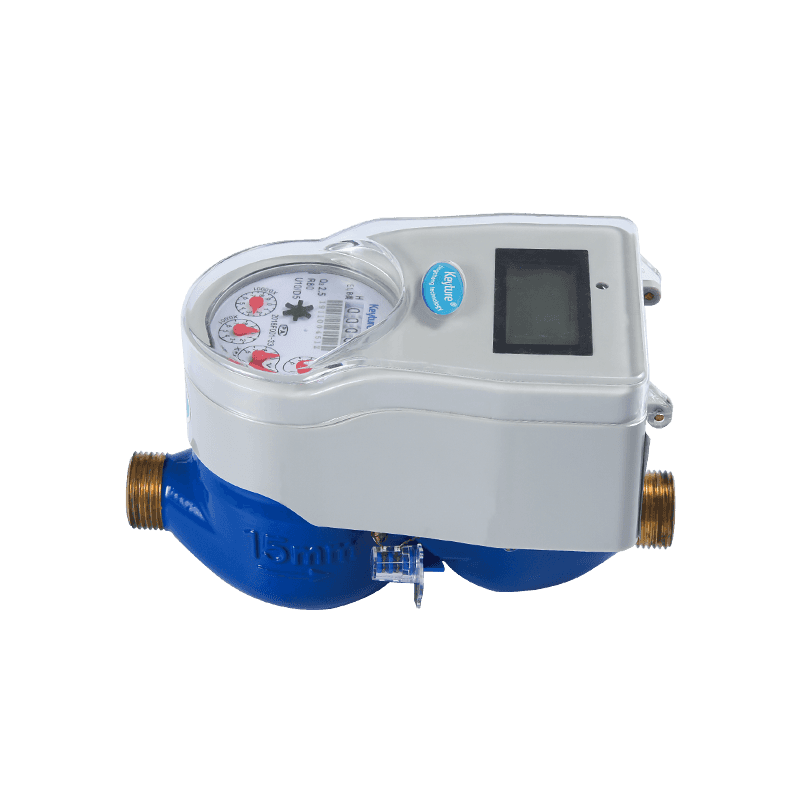

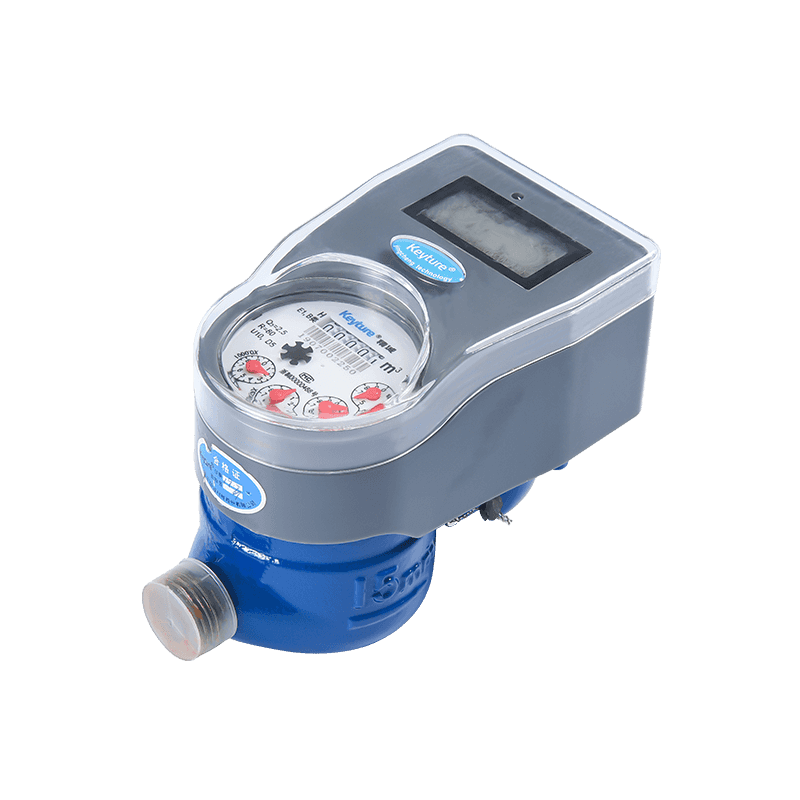

TM card pre-paid water meter consists of mechanical water meter, ball valve, circuit module, battery, reader and TM card.

PREV: Radio Frequency Card Prepaid Ball Valve Control Water Meter NEXT:Wireless Remote Valve Prepaid Smart Water Meter

Description

1. Application

Jingcheng IF card prepaid water meter is the new measuring instrument employing the microprocessor to realize water collection, processing, display, and reserving.

2. Features

● RF card water meter use a pre-paid way to achieve the new management mode of"Purchase , then use".

● Show the different level prices of the water, one card can be used for several meters.

● Double reading display: mechanical and electronic reading, unique battery protection.

● 8 functions:Anti-theft; anti-magnetic interference;step water price function; data query;easy to change battery; balance alarm; accurate counting;close valve when arrears.

● Stable performance, wide application, low power consumption, long lifetime.

● Electronic component with good sealing performance, and high protection level.

● Meter Body Adopt environmental protection material, High strength, High toughness.

3. Head Loss Curve

4. Accuracy Error Curve

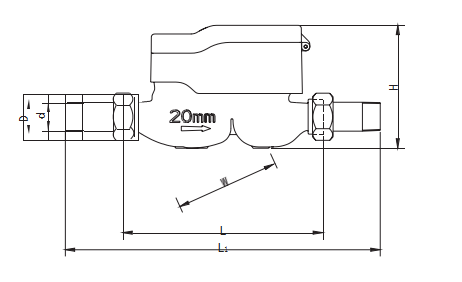

5. Installation Dimension

Item No	L1 Over Length	L Length	W Width	H Heigh	Weight /pcs(kg)	Measurement(cm)	Connection Thread
Item No	L1 Over Length	L Length	W Width	H Heigh	Weight /pcs(kg)	G.W. /N.W	D	d
LXSGZ-15E	275mm	180mm	90mm	115mm	1.6		G3/4	R1/2
LXSGZ-20E	295mm	190mm	90mm	115mm	1.7		G1	R3/4
LXSGZ-25E	345mm	225mm	100mm	130mm	2.2		G1-3/4
LXSGZ-32E	355mm	230mm	100mm	130mm	2.7		G1-1/2

6. Technical Data

Operating Voltage	Rated operational voltage	Electricity	Quiescent electricity	Ambient temperature	Low voltage protection	Volume of water per pulse signal
2.5-3.6V	3.6V	<20mA	<15uA	0.1-55 ℃	2.4V	100L

7. Main Technical Data

Model number	LXSGZ-15E			LXSGZ-20E			LXSGZ-25E			LXSGZ-32E
Nominal diameter (DN)[mm]	15			20			25			32
Ratio Q3/Q1	R80	R100	R160	R80	R100	R160	R80	R100	R160	R80	R100	R160
Overload flow rate (Q4) [m³/h]	3.125	3.125	3.125	5	5	5	7.875	7.875	7.875	12.5	12.5	12.5
Permanent flow rate (Q3) [m³/h]	2.5	2.5	2.5	4	4	4	6.3	6.3	6.3	10	10	10
Transitional flow rate (Q2) [m³/h]	0.05	0.04	0.025	0.08	0.064	0.04	0.126	0.1	0.063	0.2	0.16	0.1
Minimum flow rate (Q1) [m³/h]	0.032	0.025	0.015	0.05	0.04	0.025	0.08	0.063	0.039375	0.125	0.1	0.0625
Accuracy class	2
Maximum permissible error for the lower flow rate zone (MPEι)	±5%
Maximum permissible error for the upper flow rate zone (MPEμ)	±2% for water having a temperature ≤30℃ ±3% for water having a temperature ＞30℃
Temperature class	T30,T50,T70,T90
Water pressure classes	MAP 16
Pressure-loss classes	△P63
Indicating range[m³]	99 999
Resolution of the indicating device[m³]	0.00005
Flow profile sensitivity classes	U10 D5
Orientation limitation	HORIZONTAL
