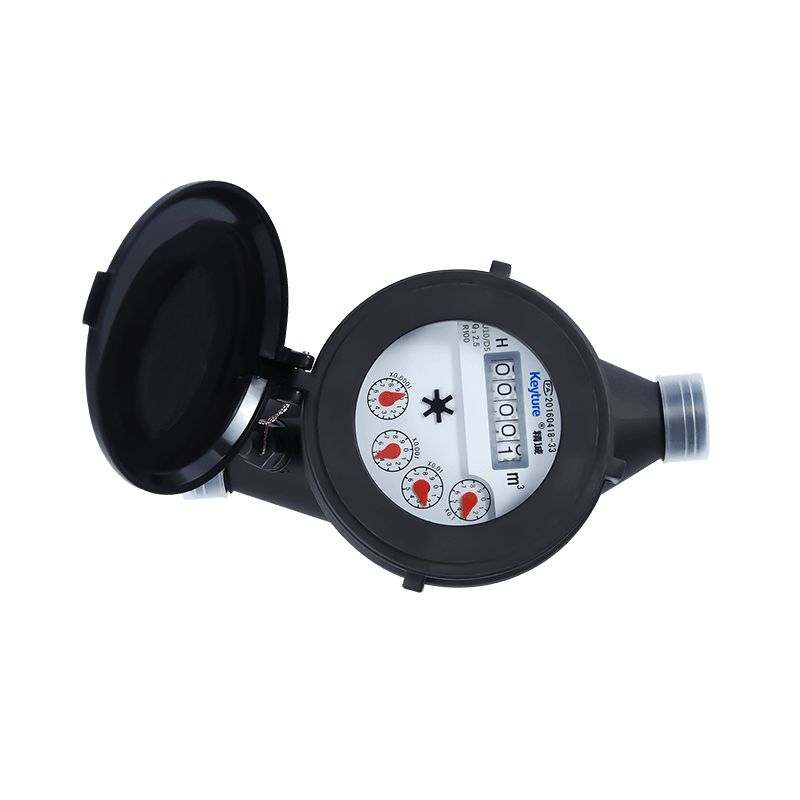

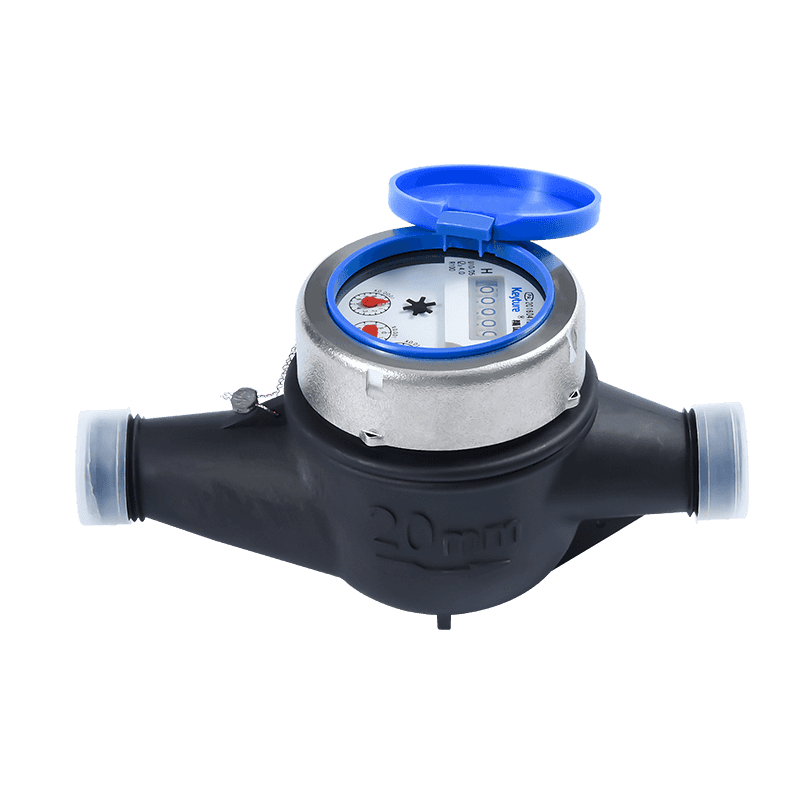

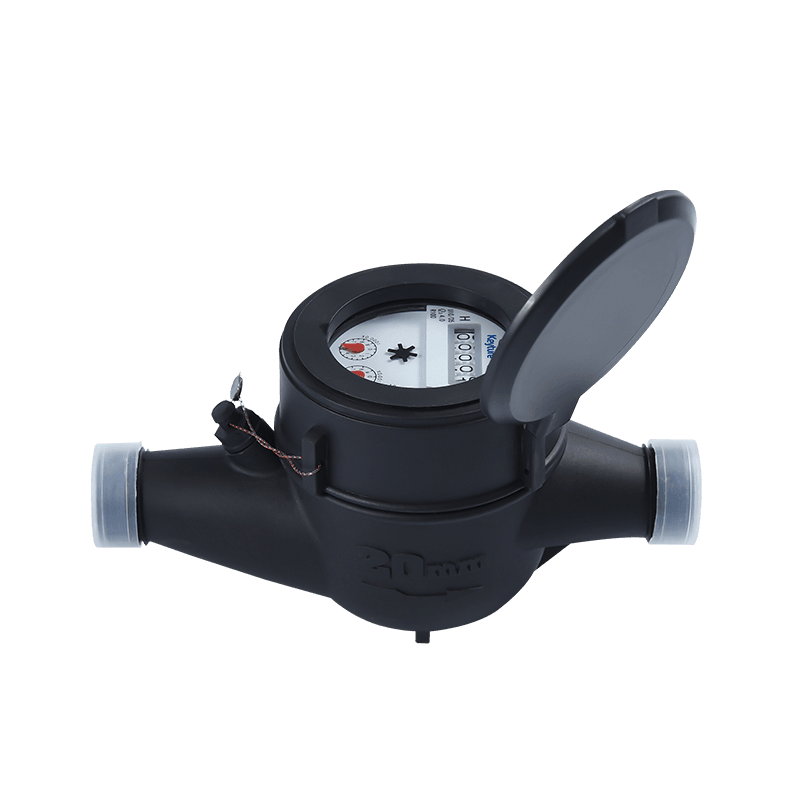

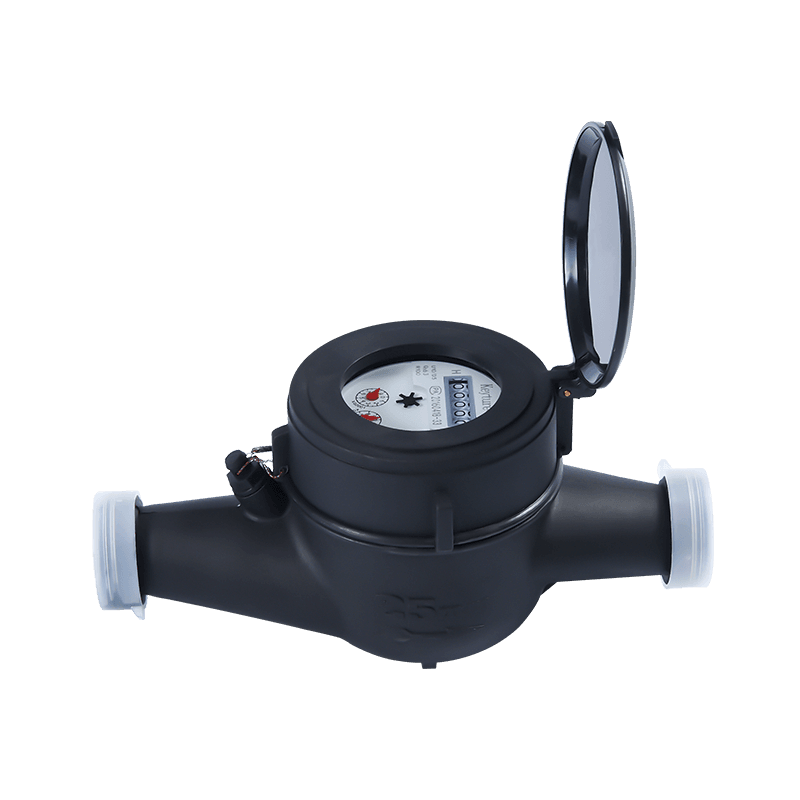

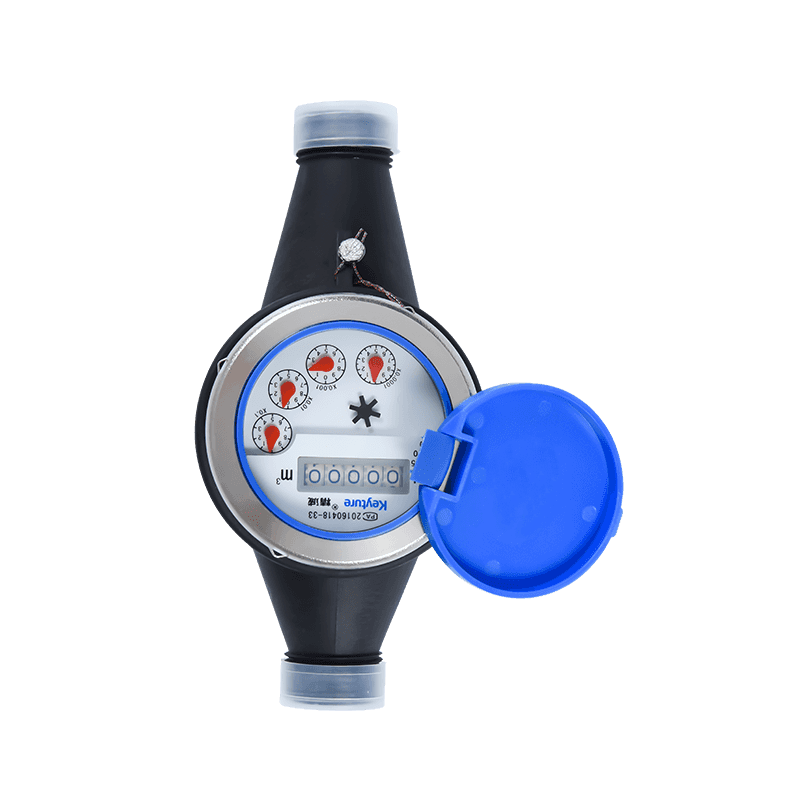

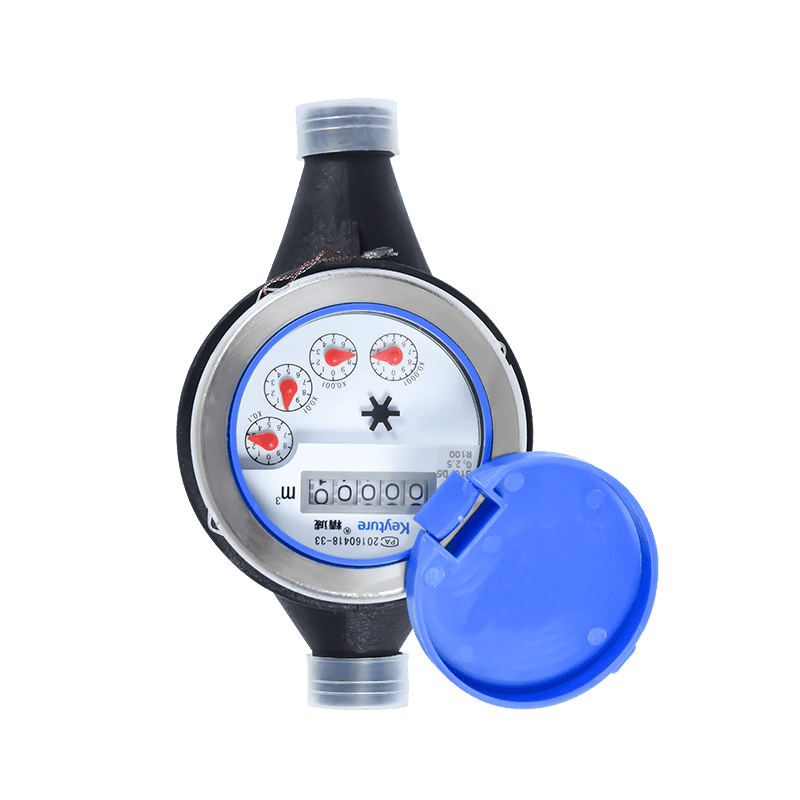

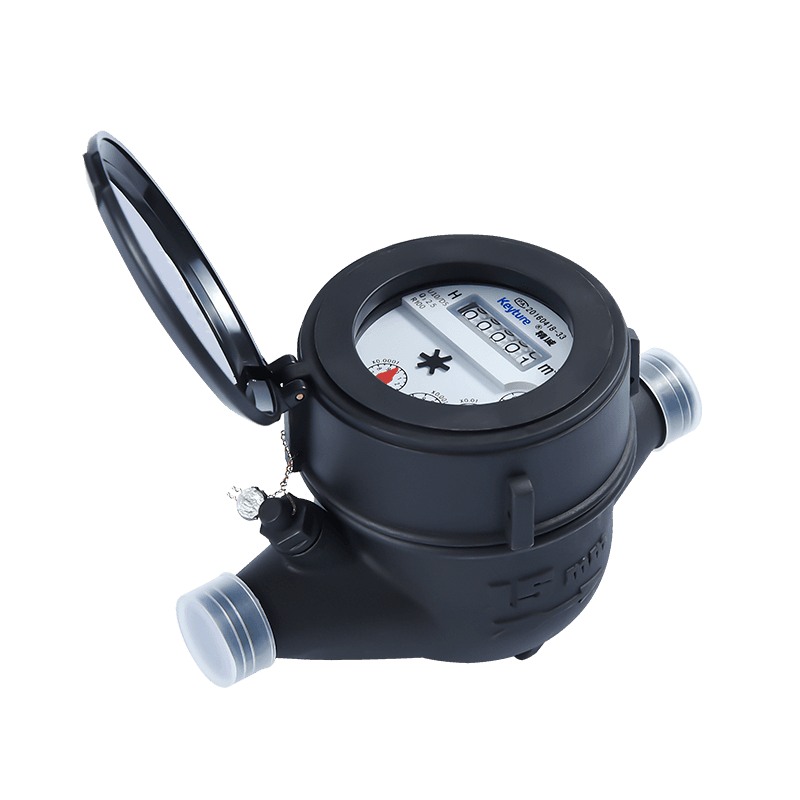

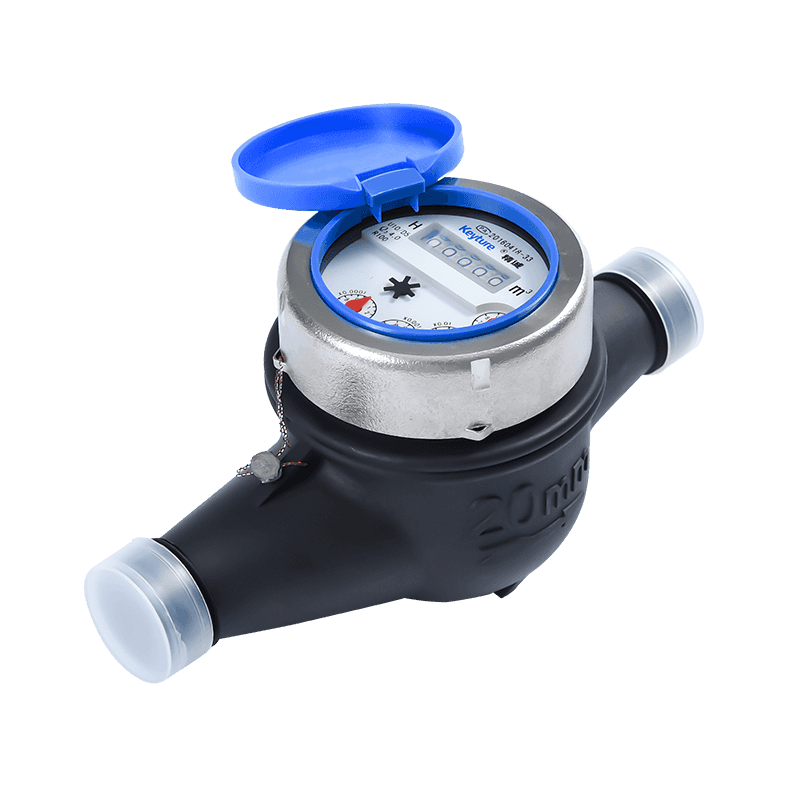

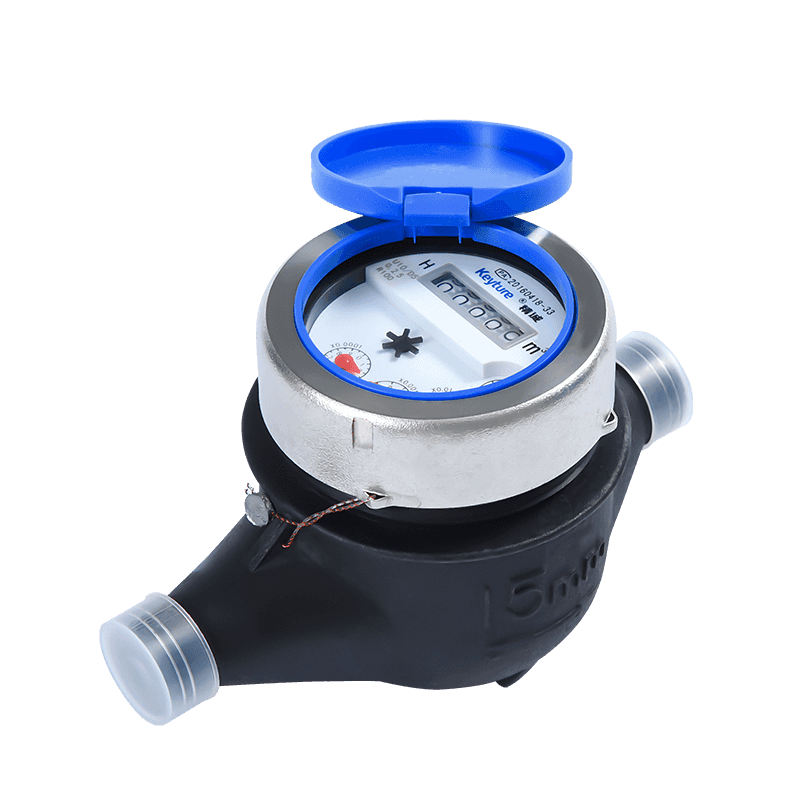

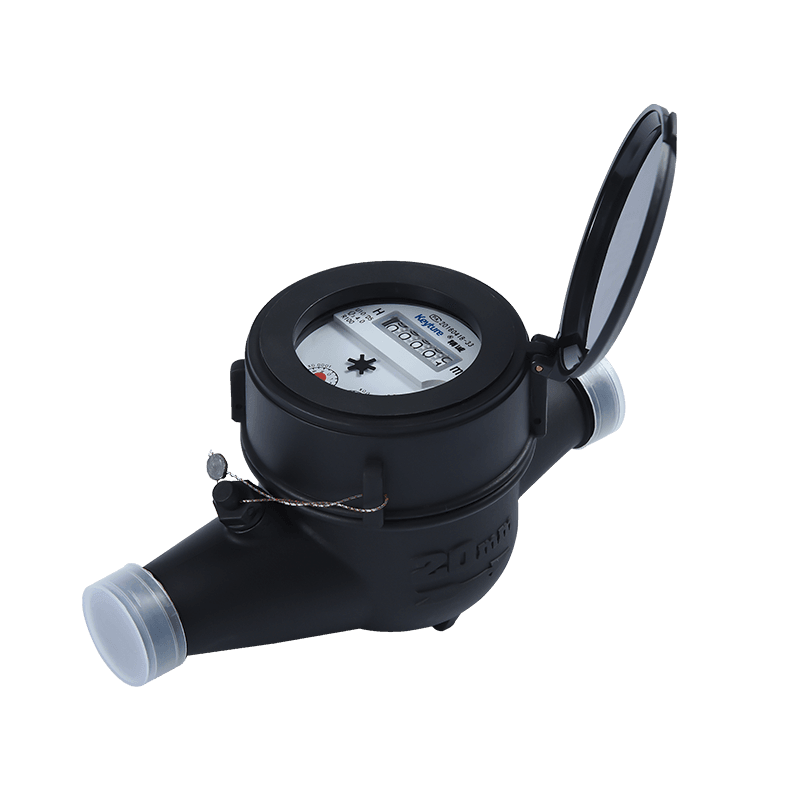

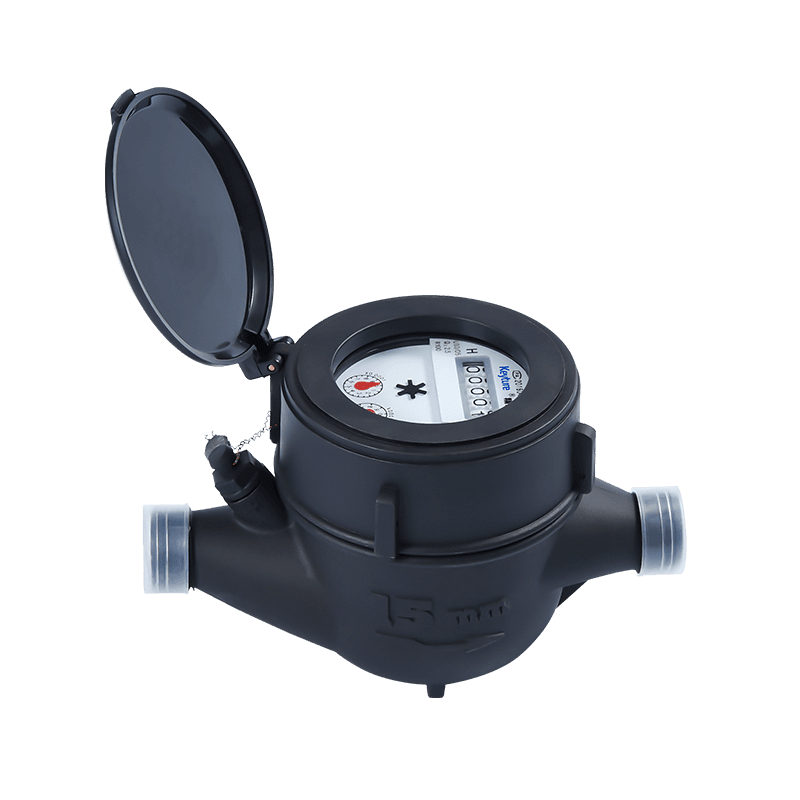

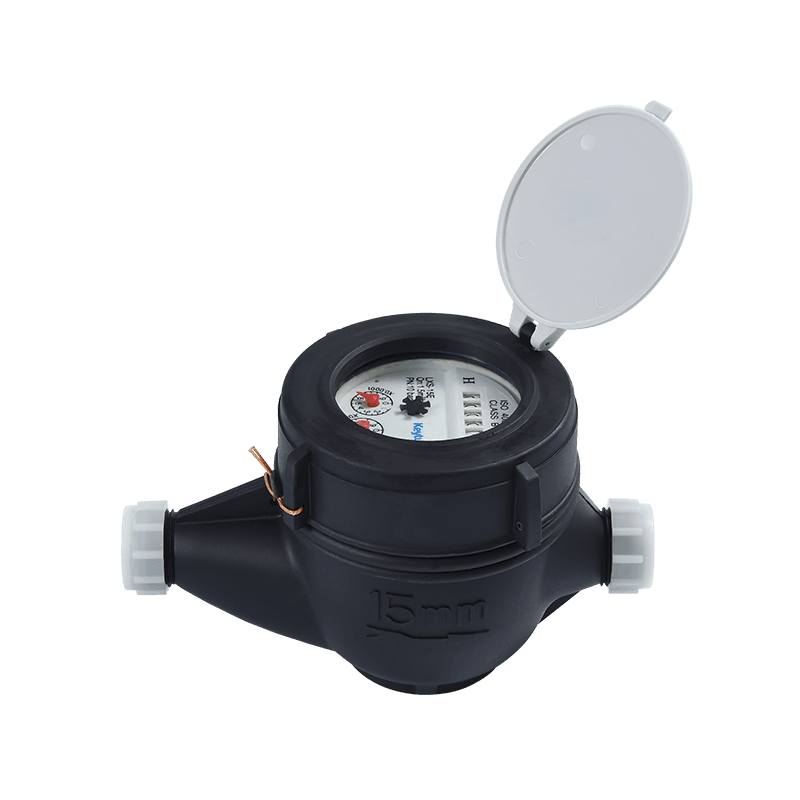

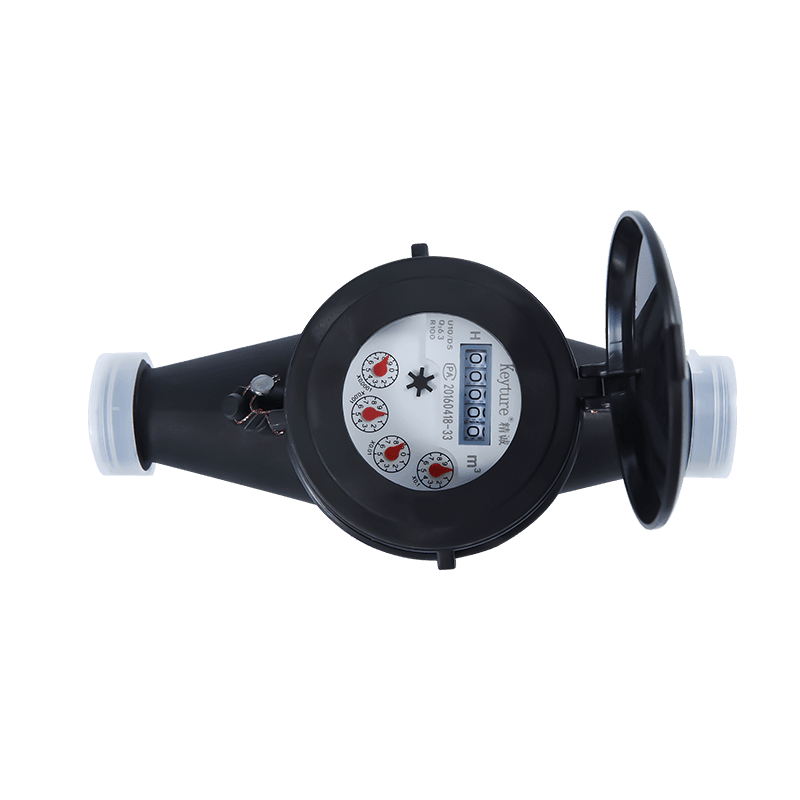

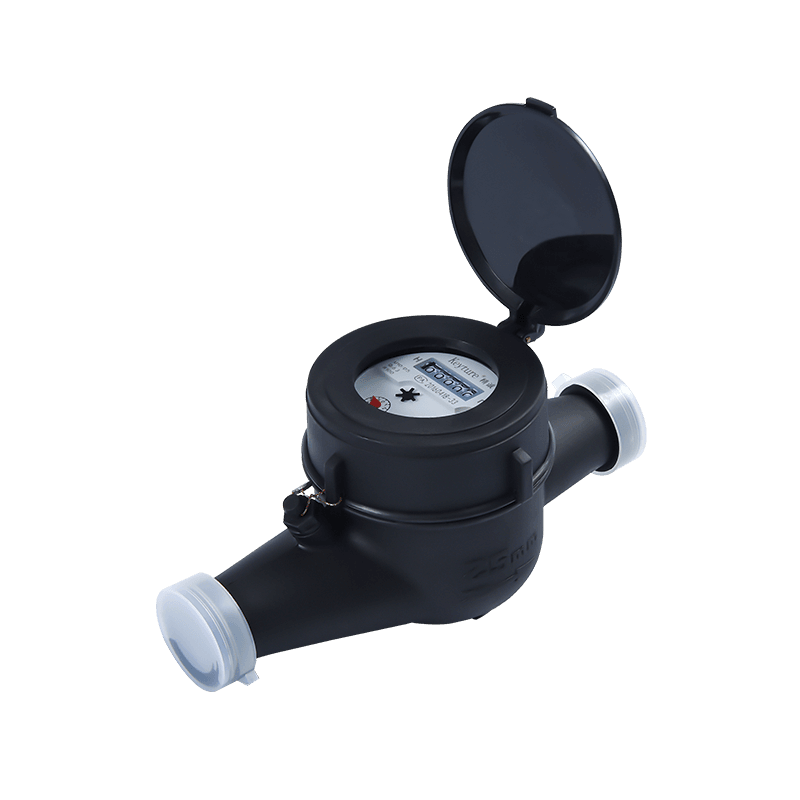

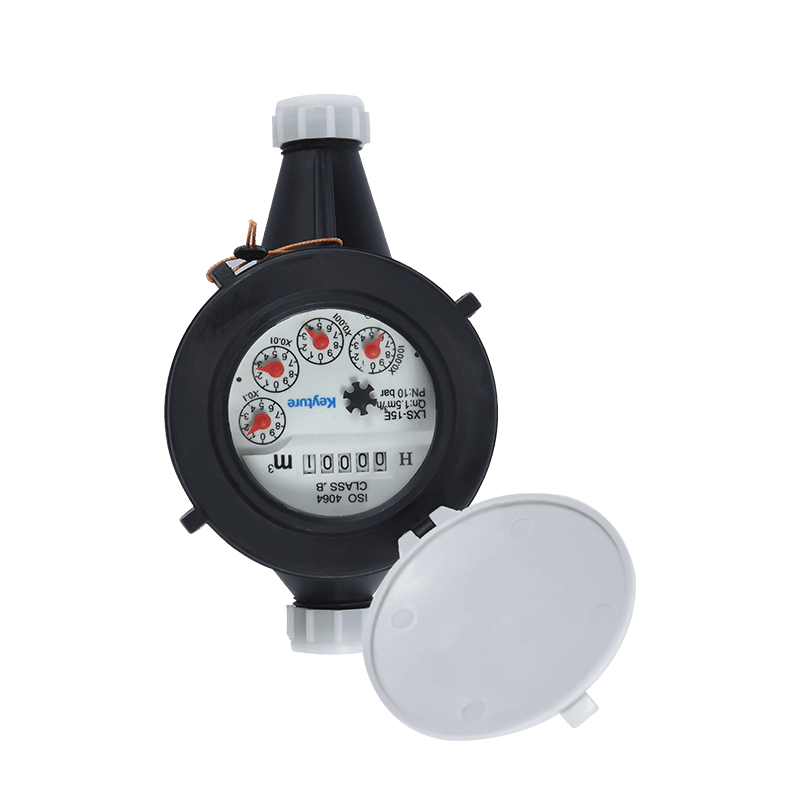

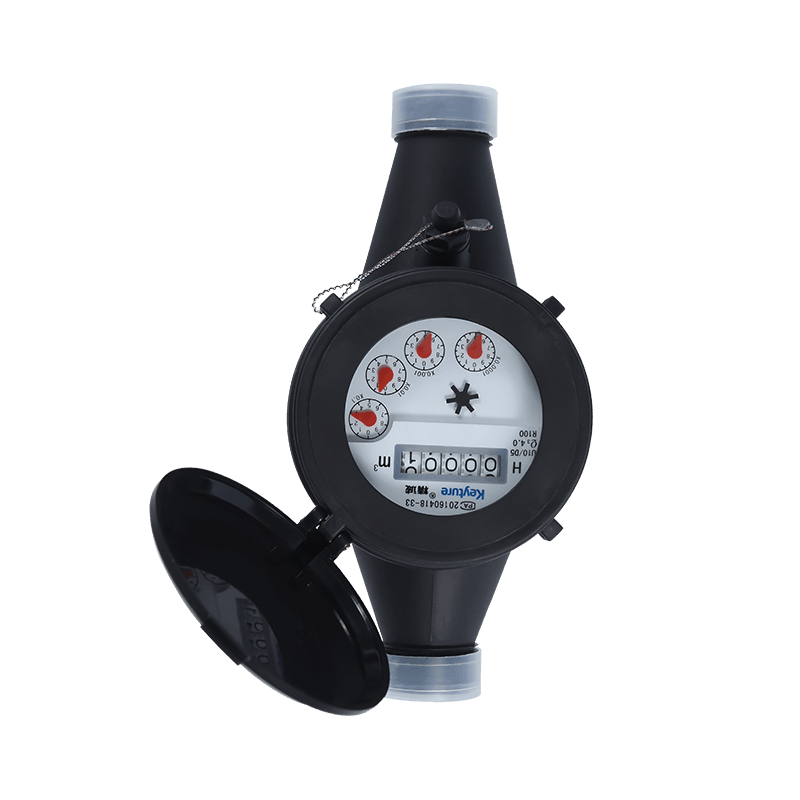

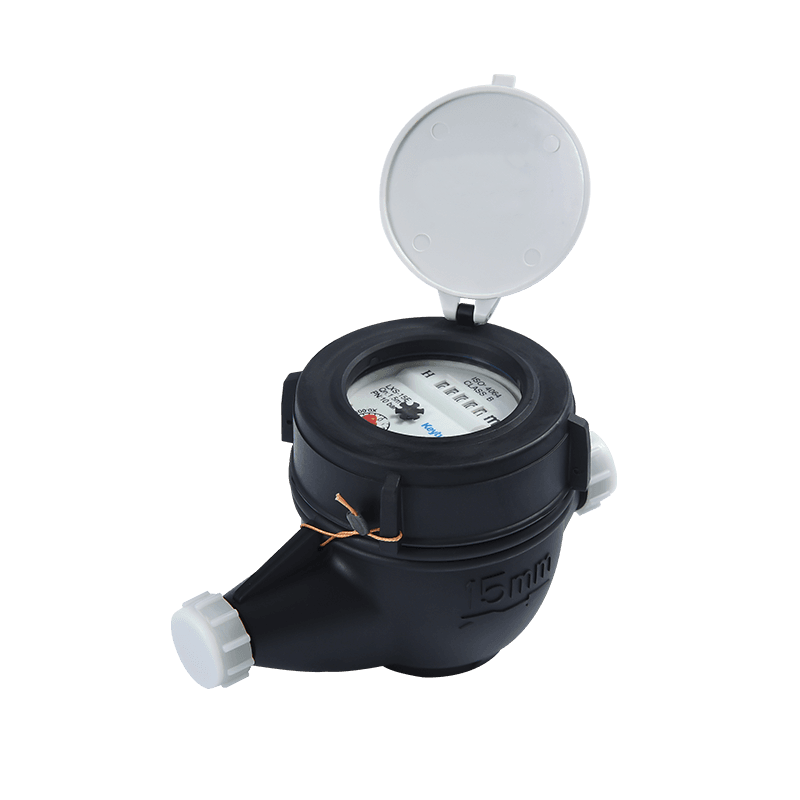

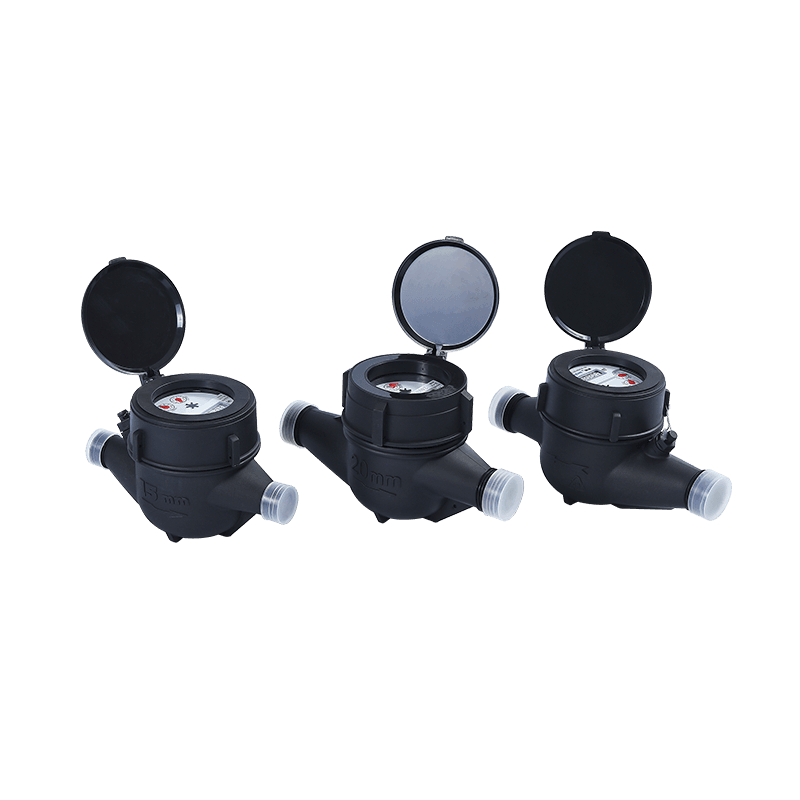

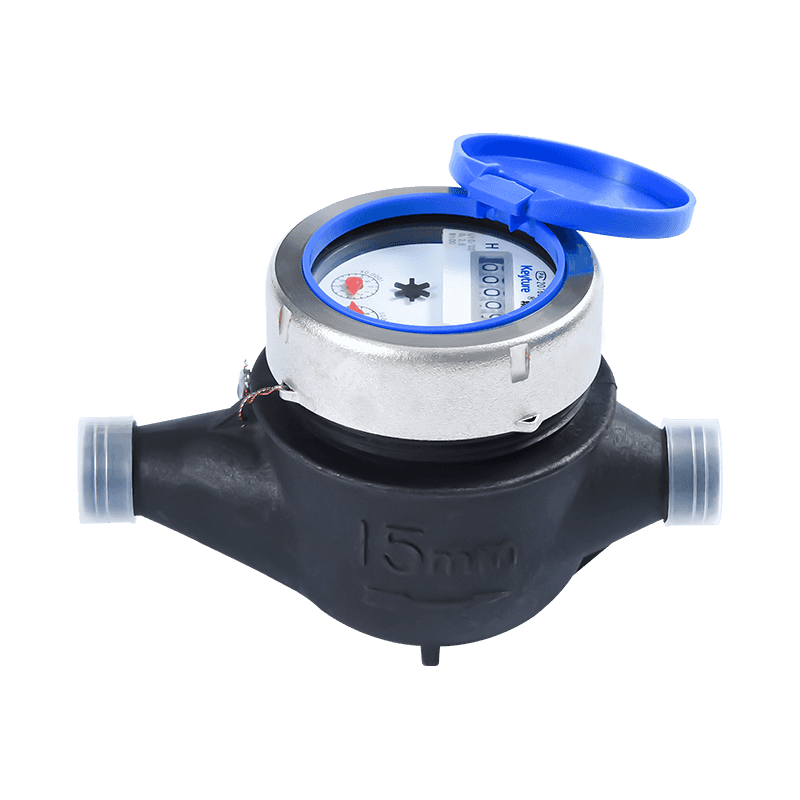

Wet Type Vane Wheel Plastic Body Multi Jet Cold Water Meter

PE, PP, ABC plastic shell, DN15-DN40, multi-jet vane wheel sealed counter dry type, gear drive, small resistance, internal or outer adjustment.

Contact UsWet Type Vane Wheel Plastic Body Multi Jet Cold Water Meter
Wet Type Vane Wheel Plastic Body Multi Jet Cold Water Meter

Description

1. Features

  • Adopt a multi-jet type, gear drive.
  • Fully liquid-sealed counter, gear drive, anti-freezing, long-term clear reading, Tamper proof.
  • Material: Brass, iron, plastic Body for option.
  • Non-return valves and strainer are available.
  • Un-affected by grit and particulates.
  • Provided with lead seal and dustproof cover.
  • Confirm to ISO4064.
  • Available for IP68.

2. Head Loss Curve

3. Accuracy Error Curve

4. Installation Dimension

Item No

LXSG-15

LXSG-20

LXSG-25

LXSG-32

LXSG-40

L

mm

260

295

345

350

375

L1

mm

165

190

225

230

245

H

mm

110

110

115

115

115

W

mm

98

98

110

110

110

Connection Thread

D(mm)

G3/4"

G1"

G1 1/4"

G1 1/2"

G2

d(mm)











Weight

with unions
kg











without unions
kg

1.2

1.4

1.8

2.2

2.6

5. Main Technical Data

Model Number



LXSG-15

LXSG-20

LXSG-25

LXSG-32

LXSG-40

Nominal diameter (DN)[mm]



15

20

25

32

40

Ratio Q3/Q1



R80

R100

R160

R80

R100

R160

R80

R100

R160

R80

R100

R160

R80

R100

R160

Overload flow rate (Q4) [m³/h]



3.125

3.125

3.125

5

5

5

7.875

7.875

7.875

12.5

12.5

12.5

20

20

20

Permanent flow rate (Q3) [m³/h]

2.5

2.5

2.5

4

4

4

6.3

6.3

6.3

16

16

16

25

25

25

Transitional flow rate (Q2) [m³/h]

0.05

0.04

0.025

0.08

0.064

0.04

0.126

0.1008

0.063

0.2

0.16

0.1

0.32

0.256

0.16

Minimum flow rate (Q1) [m³/h]



0.03125

0.025

0.015625

0.05

0.04

0.025

0.07875

0.063

0.039375

0.125

0.1

0.0625

0.2

0.16

0.1

Accuracy class



2

Maximum permissible error for the lower

flow rate zone (MPEι)

±5%

Maximum permissible error for the upper

flow rate zone (MPEμ)

±2% for water having a temperature ≤30℃
±3% for water having a temperature >30℃

Temperature class



T30,T50

Water pressure classes



MAP 16

Pressure-loss classes



△P63

Indicating range[m³]

99 999

Resolution of the
Indicating device[m³]

0.00005

Flow profile sensitivity classes

U10 D5

Orientation limitation



horizontal
