Horizontal Vane Removable Cast Iron Body Dulk Water Meter Custom

Home / Product / Bulk Water Meter / Horizontal Vane Removable Cast Iron Body Dulk Water Meter

KM06-02

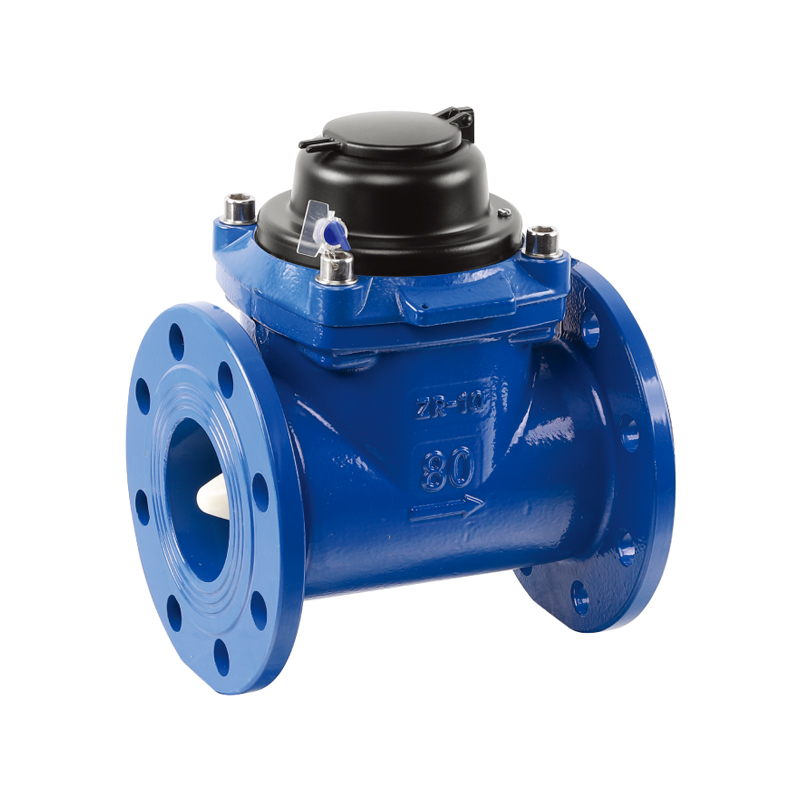

Horizontal Vane Removable Cast Iron Body Dulk Water Meter

WPH horizontal woltman water meter, dry-dial magnetic transmission structure, cleary display, small pressure loss, wide measure,anti-pry protection cover.

Contact UsHorizontal Vane Removable Cast Iron Body Dulk Water Meter
Horizontal Vane Removable Cast Iron Body Dulk Water Meter

Description

1. Feature

● Large flow capacity and small pressure lose.

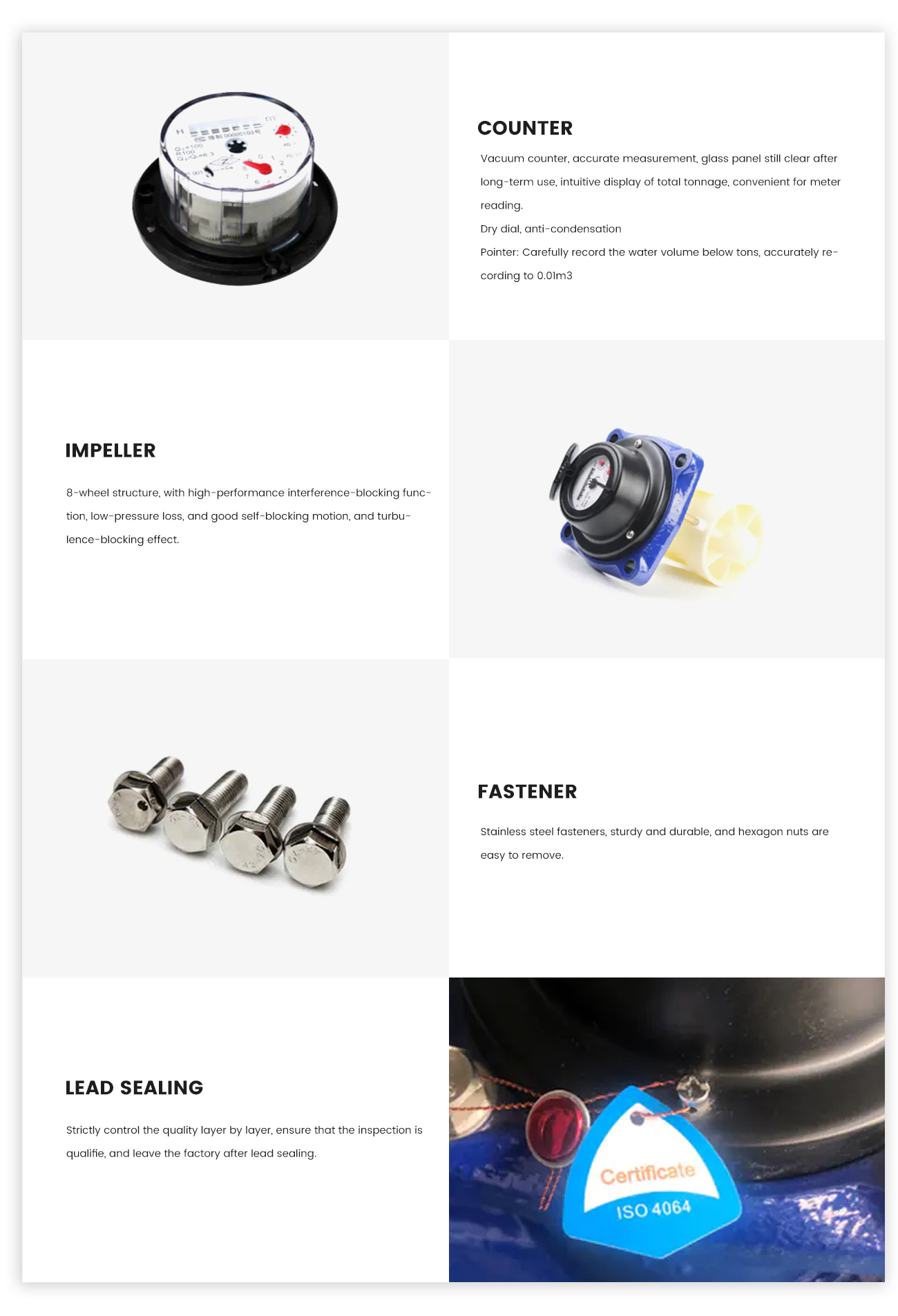

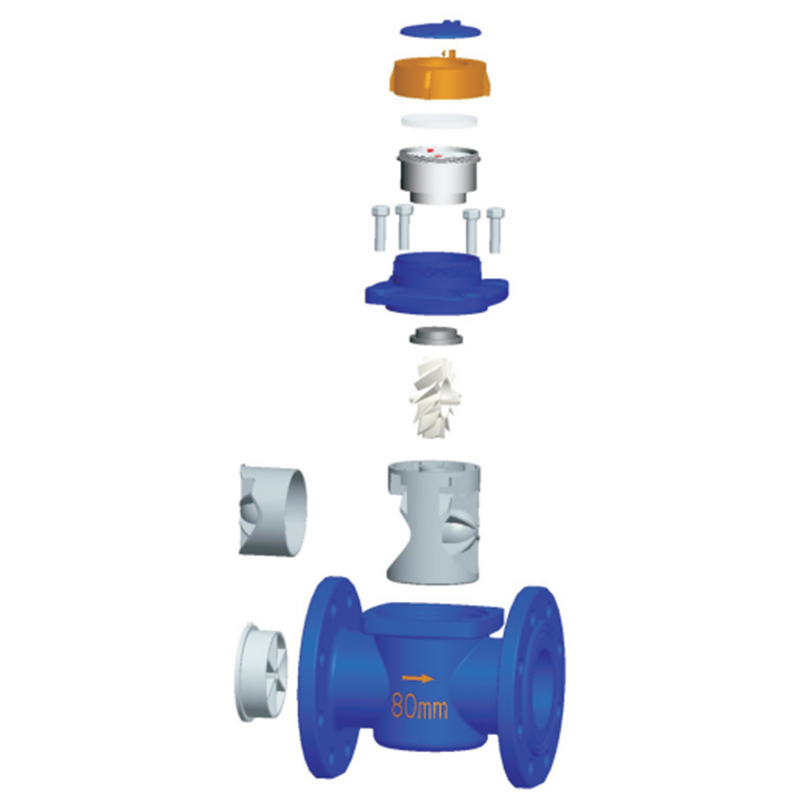

● Anti-pollution, Built-in stainless steel strainer can save the installation cost. The measuring mechanism can be removable from the body for checking maintaining and replacing.

● Selected high-quality materials for steady and reliable characteristics.

● Vacuum sealed register ensures the dial kept from fog and keep reading clear in long-term service.


2. Main Technical Data

Water meter temperature grade:  T30,T50,T70,T90

Pressure grade: MAP10

Pressure loss grade: △P63

Upstream disturbance grade: U10

Downstream disturbance grade: D5

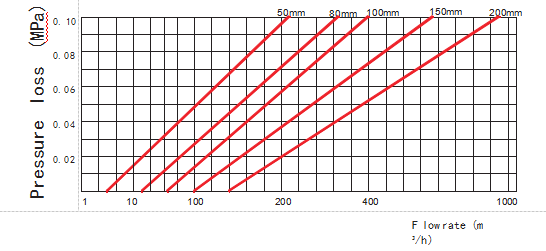

3. Head Loss Curve

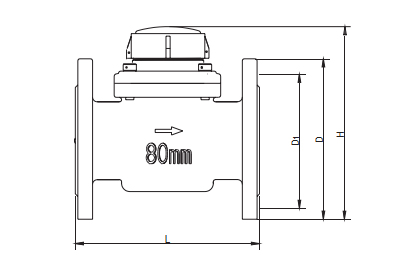

4. Installation Dimension

Diameter mm

L

D

D1

H

Connection flange

mm

Dxn

40

200

150



206

4XΦ19

50

200

165

125

210

4XΦ19

65

200

185

145

218

4XΦ19

80

225

200

160

280

4/8XΦ19

100

250

220

180

290

8XΦ19

125

250

250



310

8XΦ19

150

300

285

240

320

8XΦ23

200

350

340

295

364

8/12XΦ23



5. Flow condition

DN(mm) Flow range Maximum flow Q4 Common flow Q3 Boundary flow Q2 Minimum flow Q1 Minimum reading Maximum reading
Q3/Q1 m²/h m3
40 80 50 40 0.8 0.5 0.001 999,999
50 80 50 40 0.8 0.5 0.001 999,999
65 80 78.75 63 1.4 0.79 0.001 999,999
80 80 125 100 2.0 1.25 0.001 999,999
100 80 200 160 3.2 2.0 0.001 999,999
150 80 500 400 8.0 5.0 0.001 9,999,999
200 80 800 630 12.6 7.88 0.001 9,999,999
250 80 1260 1008 20.16 12.6 0.02 9,999,999
300 80 2000 1600 32 20 0.02 9,999,999
350 80 2800 2240 44.18 28 0.2 999,999,999
400 80 3200 2560 51.2 32 0.2 999,999,999
450 80 3200 2560 51.2 32 0.2 999,999,999
500 80 5000 4000 80 50 0.2 999,999,999
600 80 8000 6400 128 80 0.2 999,999,999
